H-section aluminum profiles catalogue

Omar Alluminio company specialized in the sale of aluminum H profiles. We are specialized in the supply of high quality aluminum profiles, ideal for industrial, construction and design applications. Our H profiles in aluminum alloy ENAW-6060 guarantee resistance, lightness and durability over time, offering versatile solutions for joints, load-bearing structures and modular supports. We offer a wide range of sizes, finishes and alloys, with the possibility of custom cutting and fast shipping.

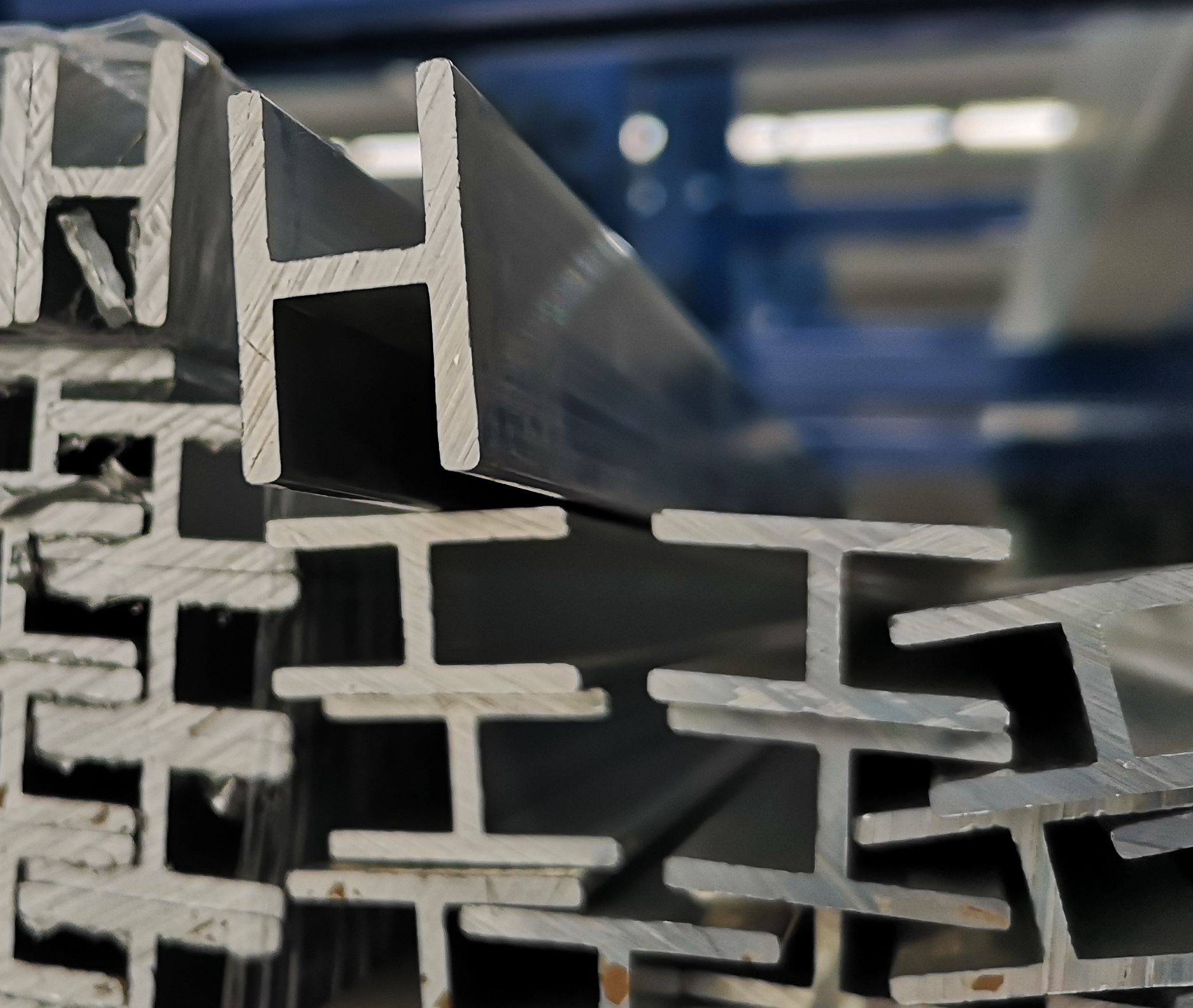

H-profiles in aluminum
H-profiles in aluminum
H 18x10x1,35H 18x10x1,35

"H" PROFILES

A

B

S

C

D

GR/MT

H 6,95x19x1,25

6,95

19 1,25     103

H 7,8x11,5x1,5

7,8

11,5

1,5     110

H 8x5x1,25

8

5 1,25     60

H 8x20x3x3x3

8

20

3

3

3

243

H 8,8x15,5x1,5

8,8

15,5 1,5     150

H 10x15,7x1,5

10

15,7 1,5     132

H 12x109,6x1,5

12

109,6 1,5     537

H 15x5,5x1,1

15

5,5 1,1     100

H 15x8x1,2x1,5

15

8 1,2 1,5 1,5 100

H 18x10x1,35

18

10 1,35     155

H 18x10x1,5x1,5x1,5

18

10 1,5 1,5 1,5 162

H 18x11x1,5x1,5x3

18

11 1,5 1,5 3 189

H 20x10x1,2

20

10 1,2     154

H 20x12x1,2

20

12 1,2     165

H 20x15,7x1,5

20

15,7 1,5     213

H 20x20x1,5

20

20 1,5     240

H 20x30x1,2x1,2x1,2

20

30 1,2 1,2 1,2 251

H 21,5x11x1,5x1,5x1,5

21,5

11

1,5

1,5

1,5

208

H 24x14x2

24

14 2     310

H 24x63,2x2,5x1,2

24

63,2 2,5 1,2   566

H 25x10x2x2x2

25

10

2

2

2

302

H 25x10x3x2x2

25

10 3 2 2 315

H 25x12,6x8x2,3x2,3

25

12,6

8

2,3

2,3

483

H 25x33,4x1,2

25

33,4 1,2     267

H 27x13x2

27

13 2     375

H 30x29,7x4

30

29,7 4     880

H 30x45x2,5x2

30

45 2,5 2   584

H 30x60x2,5x2x2

30

60

2,5

2

2

701

H 31x75x1,5

31

75 1,5     562

H 32x20,8x1,4

32

20,8 1,4     304

H 34x17,2x1,5

34

17,2 1,5     335

H 36,6x35,25x2,5

36,6

35,25 2,5     693

H 37x35x3

37

35 3     834

H 39x167x2,5

39

167 2,5     1677

H 40x15x2

40

15 2     491

H 40x40x2

40

40 2     626

H 40x49,2x2x1,5

40

49,2 2 1,5   570

H 42x29x2

42

29 2     582

H 42,5x65x2,5x2,5x2,5

42,5

65

2,5

2,5

2,5

979

H 43,4x61,5x1,5

43,4

61,5 1,5     649

H 44x6x2,2

44

6 2,2     280

H 45x55x3

45

55 3     1539

H 50x25x2

50

25 2     710

H 50x25x3x2x2

50

25

3

2

2

712

H 50x40x3

50

40 3     1000

H 50x63,2x1,2x1,5x1,8

50

63,2 1,2 1,5 1,8 680

H 50x80x6x6x3,5

50

80 6 6 3,5 2300

H 52x22x2,5x2,2

52

22 2,5 2,2 2,2 580

H 54,5x37,5x1,5

54,5

37,5 1,5     390

H 55x37,5x1,5

55

37,5 1,5     400

H 56x37,5x1,5

56

37,5 1,5     410

H 70x41x2

70

41 2     956

H 76,2x152,4x9,55x6,35

76,2

152,4 9,55 6,35   6368

H 80x90x6

80

90 6     3489

H 80x100x4,4x6

80

100 4,4 6   3880

H 80x100x6x8x8

80

100 6     4017

H 80x100x6x8x8

80

100

6

8

8

4817

H 80x350x9x7x5

80

350 9 7 5 8140

H 82x145x3x6

82

145 3 6 6 5260

H 86x162,5x12x8

86

162,5 12 8   8680

H 95,5x55x4,5

95,5

55 4,5     2874

H 100x70x6

100

70 6     4180

H 100x100x7x7

100

100 7 7   5406

H 100x100x10x10x10

100

100

10

10

10

7560

H 100x120x8x6

100

120 8 6   7030

H 100x140x13x9

100

140 13 9   12130

H101,6x215,9x11,11x7,94

101,6

215,9 11,11 7,94   10830

H 105x56x1,5

105

56 1,5     1080

H 107x61x5x5x5

107

61 5 5 5 3596

H 120x80x7x9

120

80 7 9   6000

H 120x200x8x8x6

120

200 8 8 6 8460

H 122x158x5x6

122

158 5 6 6 6690

H 124x306x7x7x6,35

124

306 7 7 6,35 9780

H 140x90x8x10

140

90 8 10 10 7450

H 140x135x5x6x6

140

135

5

6

6

6196

H 140x135x5x8x8

140

135

5

8

8

7654

H 140x200x15x10x7,5

140

200 15 10 7,5 13325

H 150x32x3

150

32 3     2628

H 150x202x12x6

150

202 12 6   11761

H 150/110x203x12x10x5

150/110

203 12 10 5 10403

H 160x74x7x10

160

74 7 10   7000

H 160/100x220x14x13x8

160/100

220 14 13 8 13857

H 170x116x13x13x18

170

116 13 13 18 16848

H 170x250x15x10

170

250 15 10   19931

H 170x250x17x15x8

170

250 17 15 8 19051

H 170x314,7x15x15x10

170

314,7 15 15 10 21850

H 200/120x240x12x8

200/120

240 12 8   15148

H 200/150x240x14x12x8

200/150

240 14 12 8 17415

H 200x132x20x16

200

132 20 16   23500

H 200x136x18x18x20

200

136 18 18 20 25600

H 200x142x23,5x23,5x21,5

200

142 23,5 23,5 21,5 31828

H 200x450x12x12x12

200

450 12 12 12 27180

H 220x170x15x9

220

170 15 9   18620

H 250x220x15x14,5

250

220 15 14,5   26900

H 250x250x13x13x8

250

250 13 13 8 22480

H 314,7x170x10x15

314,7

170 10 15   21460

H 355x310x19x20

355

310 19 20   49700

H 400x308x19x20

400

308 19 20   52160

H 440x307x19x20

440

307 19 20   59200

H 550x200x20x30

550

200 20 30   60700



Alternatively Download:

   Maximum extrudable dimensions

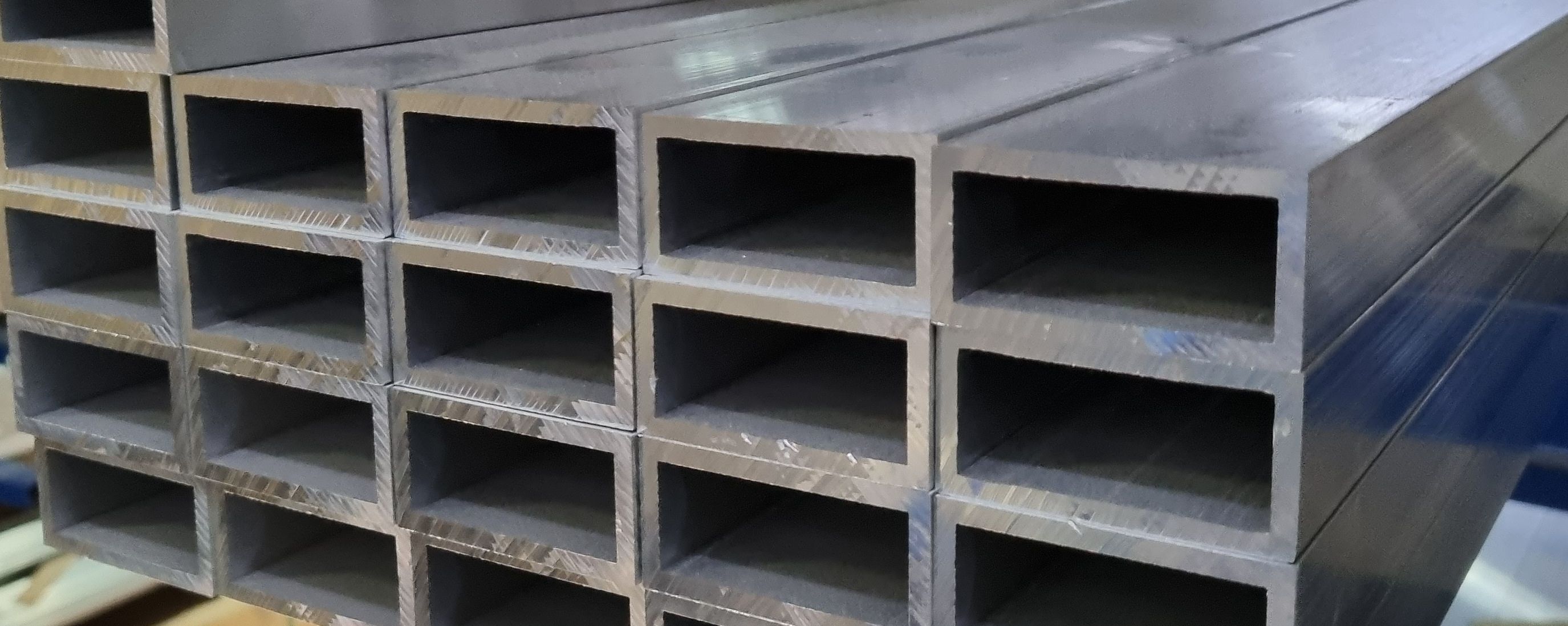

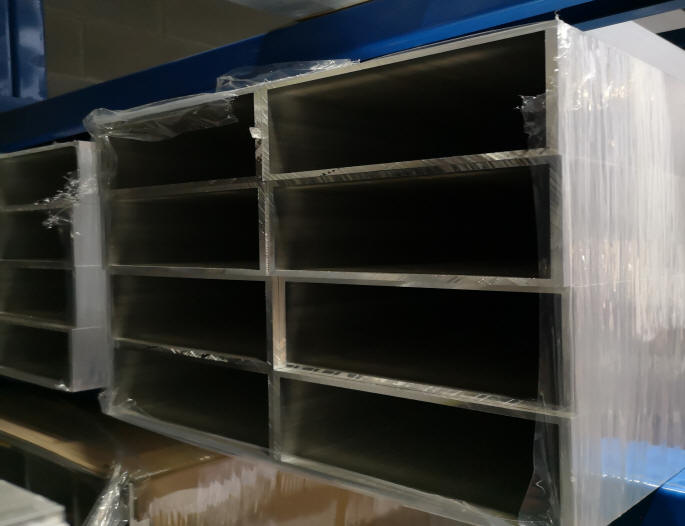

Rectangular aluminum tubes

tubi rettangolari in alluminio   Rectangular Tubes Catalog

Tubular aluminum profiles: rectangular tubes, boxed aluminum tubes also of large dimensions and with large thicknesses. Where not otherwise specified, the aluminum alloy used is according to the UNI standard : EN-AW6060

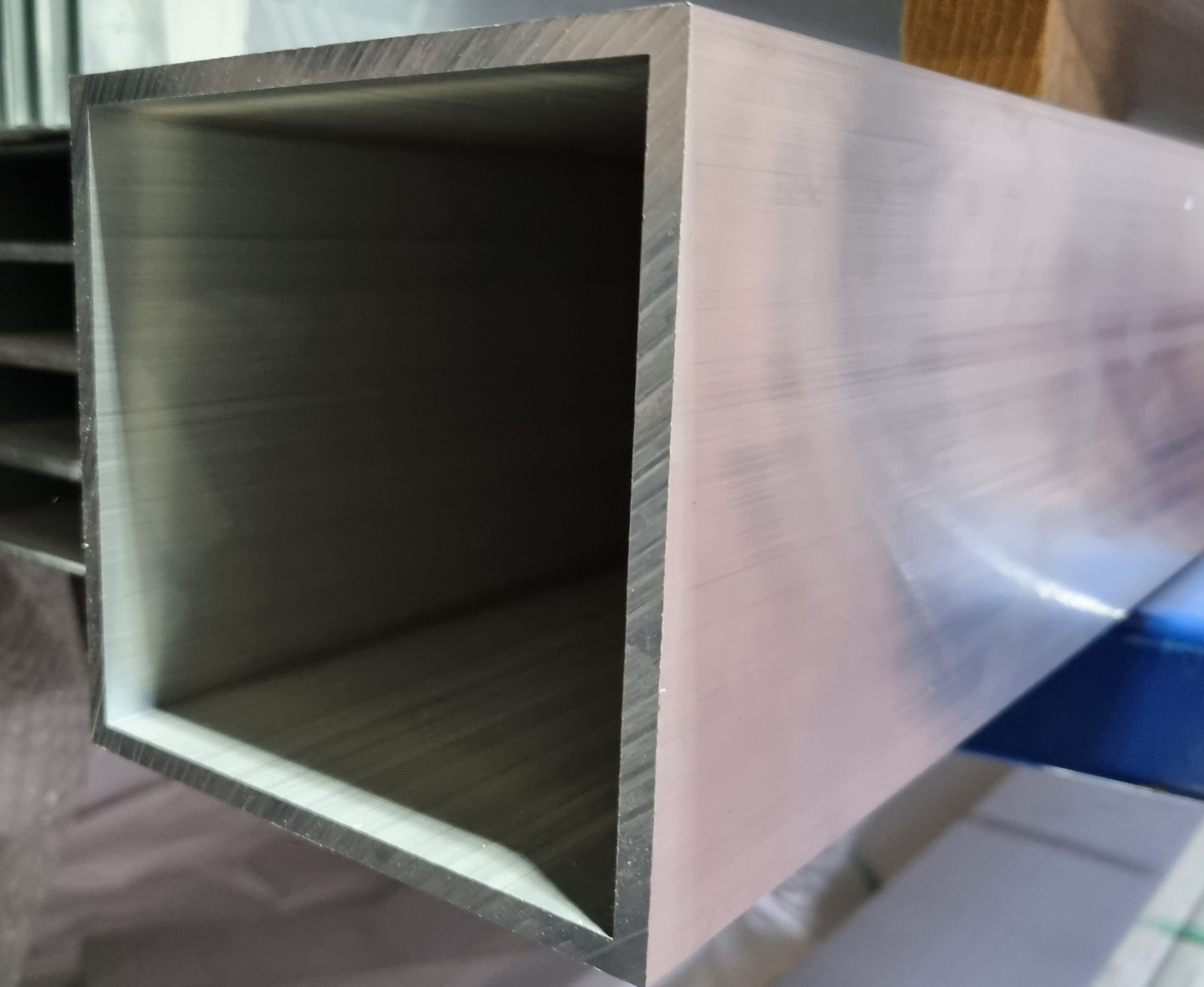

Aluminum square tubes

profili tubi quadri in alluminio
  Square tube catalog

Aluminium profiles square tubes: extruded tubular square boxed profiles also of large dimensions. Where not otherwise specified the aluminium alloy used according to the UNI standard : EN-AW6060

Rectangular tubes with rounded edges in aluminum

tubi rettangolari a spigoli raggiati Radial rectangular tubes catalog

Aluminum profiles rectangular tubes with rounded edges: extruded rectangular boxed tubular profiles with rounded edges, even in large sizes. Where not otherwise specified, the aluminum alloy used is in accordance with the UNI standard : ENAW6060

Rounded edge square tubes in aluminum

tubi quadri in alluminio  Catalog of square tubes with rounded edges

Aluminium profiles square tubes with radiused / rounded edges, even of large dimensions. Where not otherwise specified, the aluminium alloy used is in accordance with the UNI standard : EN-AW6060



Semicircular aluminum tubes

 Semicircular Tubes Catalog

Semi-circular tube aluminum profiles: we have a wide range of semi-circular tubular aluminum profiles. Unless otherwise specified, the aluminum alloy used is according to the UNI standard : ENAW6060

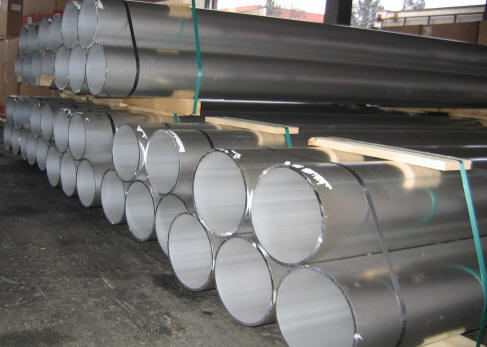

Round aluminum tubes

tubi tondi in alluminio
Round Tubes Catalog

Aluminium profiles round tubes ready for delivery: extruded aluminium round tube bars, even large ones. Where not otherwise specified, the aluminium alloy used is in accordance with the UNI standard. : EN-AW6060

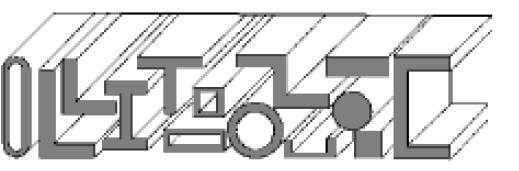

Standard aluminum profiles

profili in alluminio anodizzato per led  Standard Profiles Catalog

Production and sale of standard / commercial aluminium profiles available in stock in bars usually 6 m long. Where not otherwise specified, the aluminium alloy used is in accordance with the UNI standard. : EN-AW6060

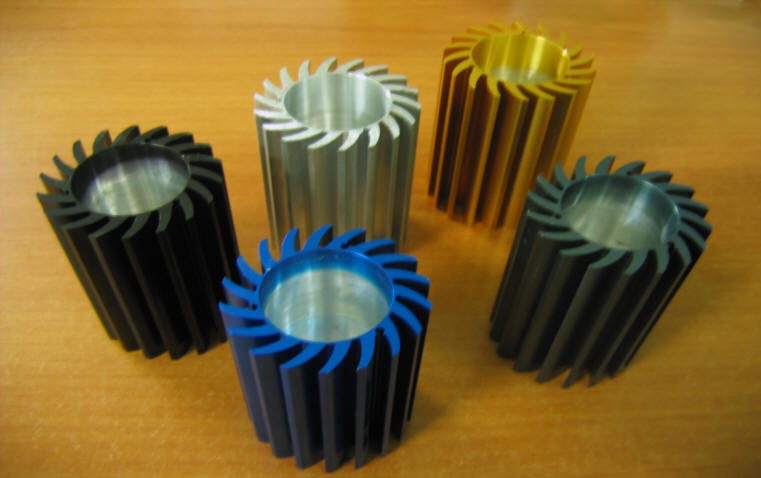

Special aluminium profiles

dissipatore di calore in alluminio    Aluminum Profiles Catalog

Wide range of aluminum profiles of various shapes and sizes, we can supply these profiles in bars or cut to size and machined to design and possibly anodized.


processing on aluminium profiles
We carry out mechanical processes such as:

Cutting to size on aluminium profiles even of large dimensions, drilling, threading, milling, cutting and finishing such as anodizing, painting on aluminium profiles even for modest quantities
