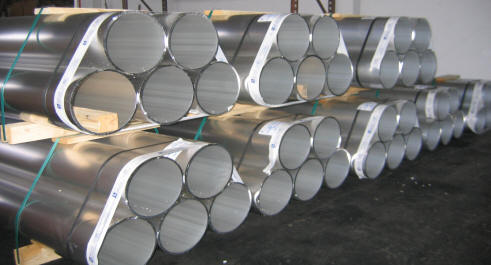

DIN EN 755-8 ex DIN59705 Aluminium profiles for pneumatic cylinders / calibrated aluminium tubes for pneumatic cylinders
ALUMINUM PROFILES WITH HIGH QUALITY CHARACTERISTICS:
after careful extrusion the profile is subjected to special cold
calibration processing of the jacket (internal part)
Aluminium Alloy 6060 T6 / 6063 T6 Minimum mechanical characteristics:
Rm = Mpa 245 Rp 0,2 = Mpa 200 A% = 8 HBW = 80
Anodizing: - oxide layer thickness: class 20 μm +10/-4 (internal) +10/-8 (external) - oxide layer hardness: 420 HV25 +130/-30 Internal diameter roughness: -Ra radial ≤ 0.6 μm -Rmax radial ≤ 9 μm -Ra axial ≤ 0.4 μm -* Ra radial ≤ 0.8 μm -* Rmax radial ≤ 10 μm -* Ra axial ≤ 0.5 μ
Full range of our aluminium profiles available on the website: www.omar-alluminio.it
|
Code |
Diameter (mm) |
Toll. Internal Dia. |
Weight (kg/m) |
|
PN1216 * |
12x16 |
H11 |
0,237 |
|
PN1620 * |
16x20 |
H11 |
0,305 |
|
PN2024 * |
20x24 |
H11 |
0,373 |
|
PN2025 * |
20x25 |
H11 |
0,477 |
|
PN2529 |
25x29 |
H11 |
0,458 |
|
PN2530 * |
25x30 |
H11 |
0,583 |
|
PN3236 |
32x36 |
H11 |
0,576 |
|
PN3238 * |
32x38 |
+0,2/-0 |
0,890 |
|
PN2540 * |
35x40 |
+0,2/-0 |
0,795 |
|
PN3640 * |
36x40 |
+0,2 |
0,644 |
|
PN4044 * |
40x44 |
H11 |
0,712 |
|
PN4045 |
40x45 |
H11 |
0,900 |
|
PN5054 * |
50x54 |
H11 |
0,881 |
|
PN5055 |
50x55 |
H11 |
1,11 |
|
PN5057 * |
50x57 |
H11 |
1,588 |
|
PN5060 * |
50x60 |
+0,25/-0 |
2,332 |
|
PN5560 |
55x60 |
H11 |
1,219 |
|
PN5660 * |
56x60 |
H11 |
0,983 |
|
PN6065 * |
60x65 |
H11 |
1,325 |
|
PN6368 |
63x68 |
H11 |
1,388 |
|
PN6570 * |
65x70 |
H11 |
1,431 |
|
PN7075 * |
70x75 |
+0,30/-0 |
1,537 |
|
PN7580 * |
80x75 |
H11 |
1,643 |
|
PN8085 * |
80x85 |
H11 |
1,749 |
|
PN8086 |
80x86 |
H11 |
2,111 |
|
PN8590 * |
85x90 |
H12 |
1,855 |
|
PN9095 * |
90x95 |
H12 |
1,961 |
|
PN9097 * |
90x97 |
H12 |
2,775 |
|
PN95100 * |
95x100 |
H12 |
2,067 |
|
PN100106 |
100x106 |
H12 |
2,621 |
|
PN105110 * |
105x110 |
H12 |
2,279 |
|
PN125131 |
125x131 |
H12 |
3,256 |
|
PN125132 |
125x132 |
H12 |
3,813 |
|
PN150160 * |
150x160 |
H12 |
6,752 |
|
PN160170 |
160x170 |
H13 |
6,996 |
|
PN200210 |
200x210 |
H14 |
8,692 |
