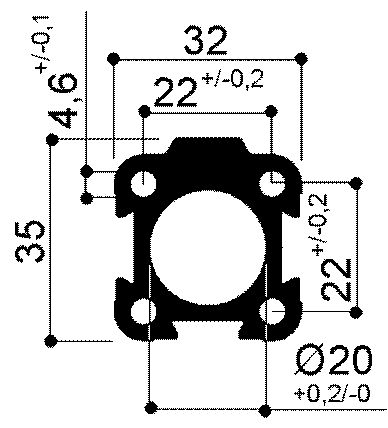

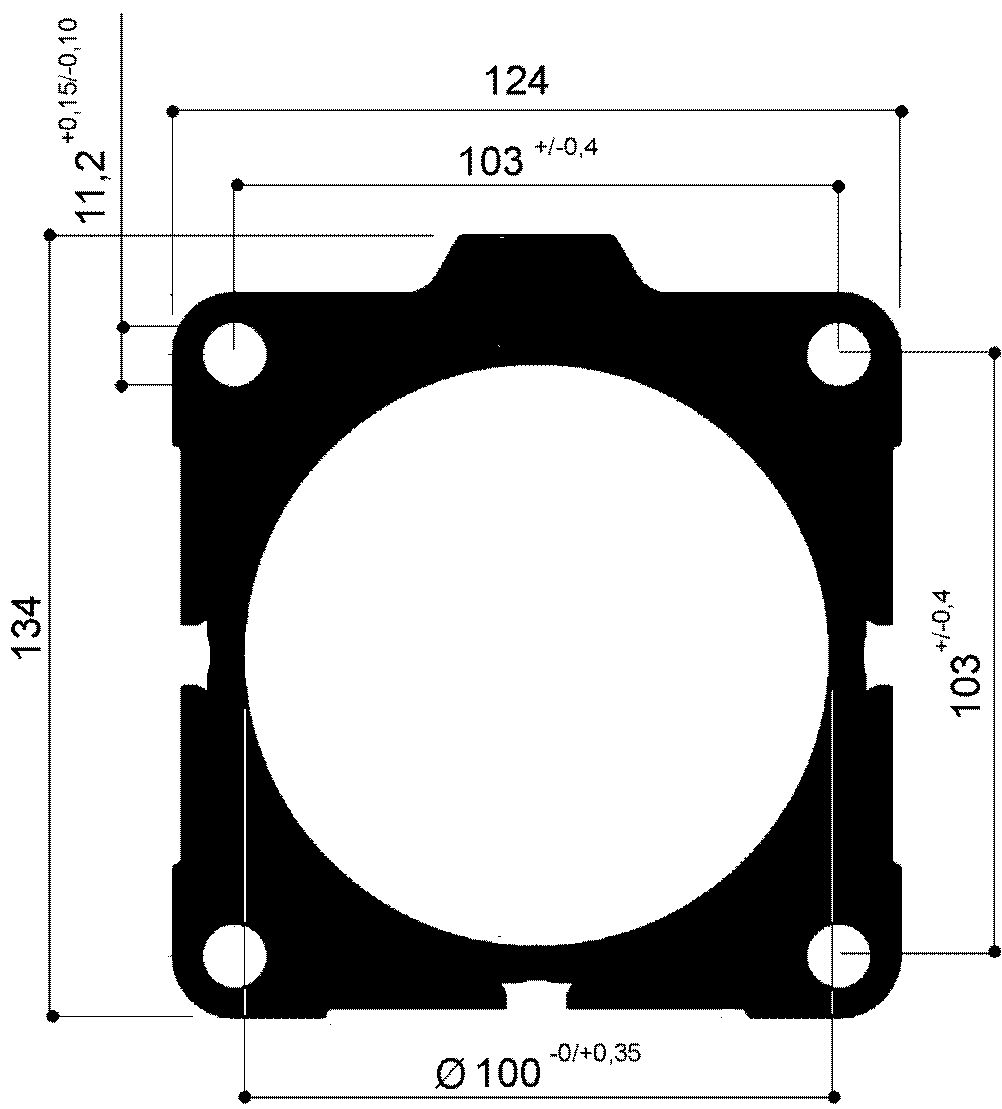

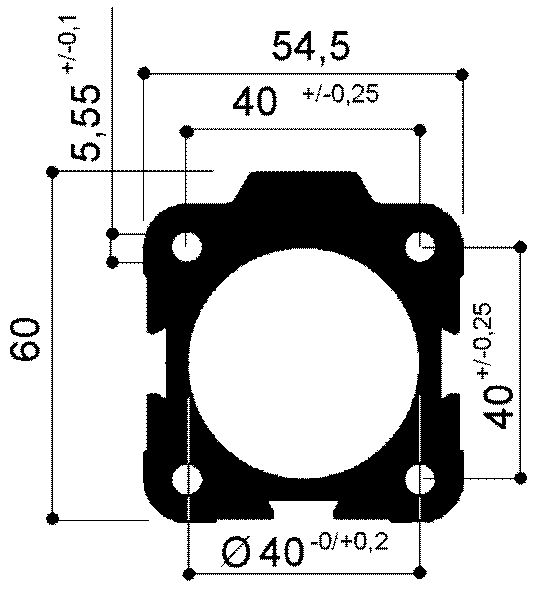

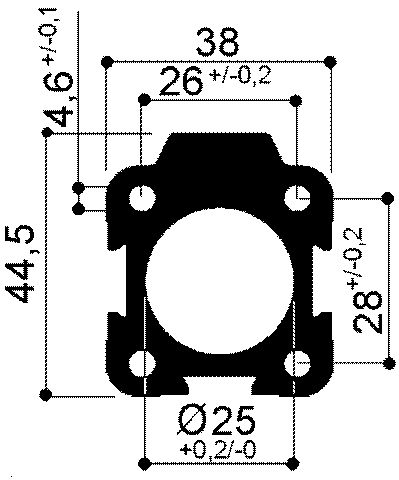

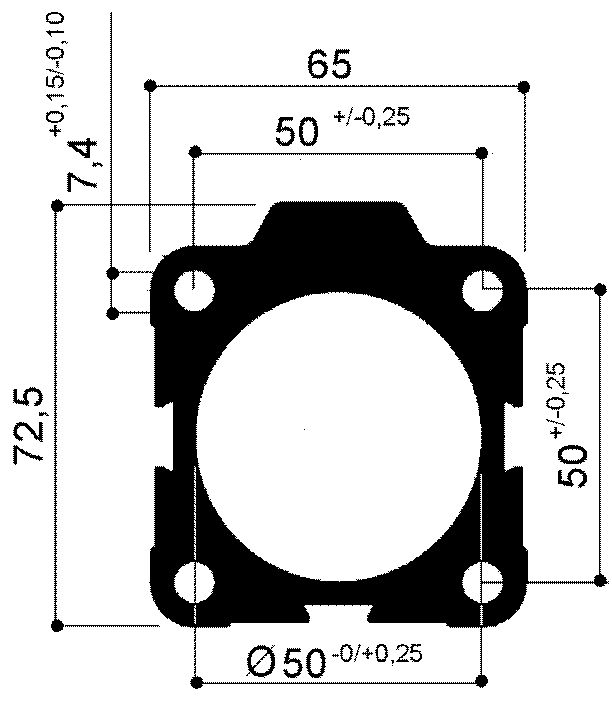

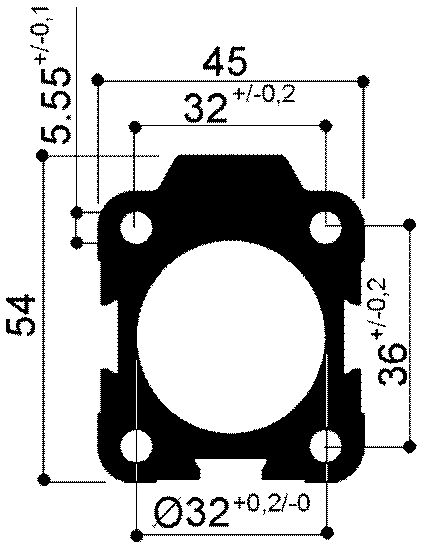

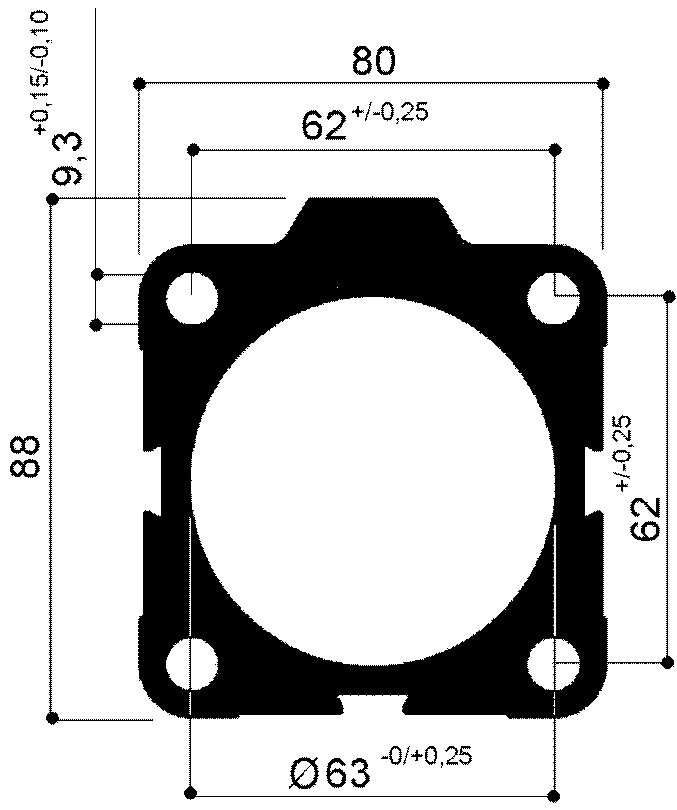

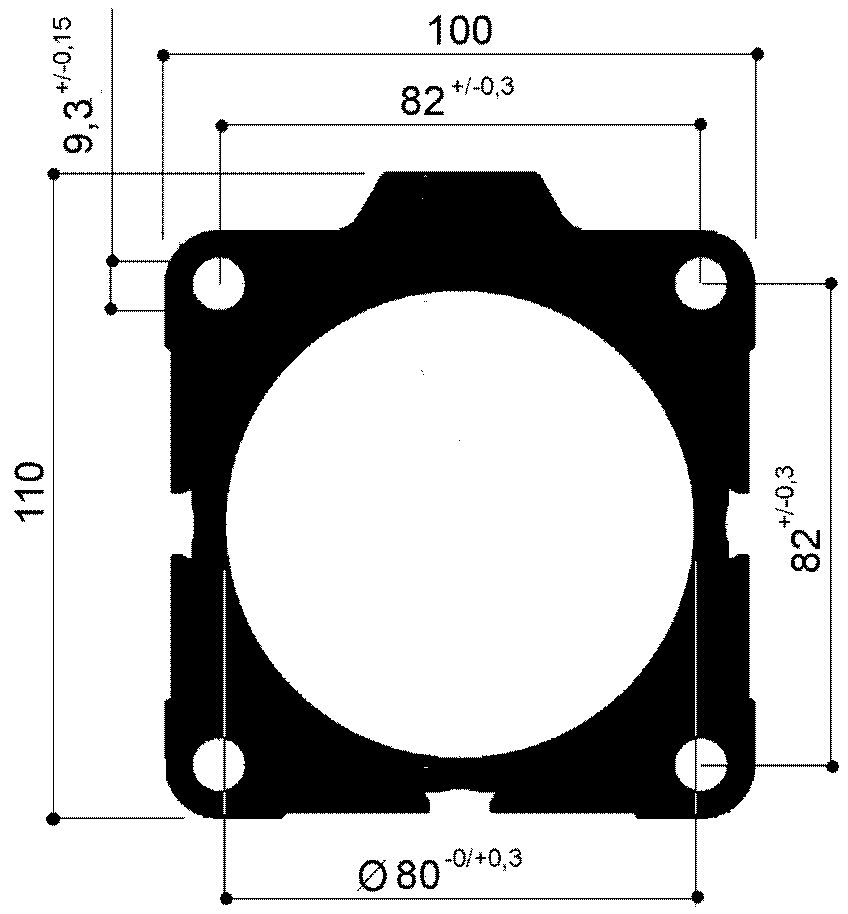

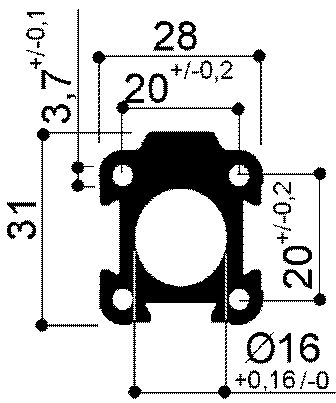

ALUMINUM TUBES FOR PNEUMATIC CYLINDERS: SERIES 94 SHORT STROKE
Aluminum tubes suitable for the production of pneumatic cylinders for drives. These tubes are extruded, in aluminum alloy EN-AW6060T6 / EN-AW6063T6 subsequently calibrated - broached by mechanical processing and finally anodized class 20 µm
NOTE: SPECIAL TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT after an
accurate extrusion the profile is subjected to a special cold calibration
process of the jacket (internal part)
Minimum mechanical characteristics:
Rm= Mpa 245 Rp0,2= Mpa 200 A5%=8 HBW=80
Anodization:
- oxide layer thickness: class 20 µm +10/-4 (internal) +10/-8 (external)
- oxide layer hardness: 420 HV25 +130/-30
Roughness internal diameter:
-Ra radial = 0.6 µm -Rmax radial = 9 µm -Ra axial = 0.4 µm -* Ra radial =
0.8 µm -* Rmax radial = 10 µm -* Ra axial = 0.5 µm
Full range of our aluminium profiles available on the website: www.omar-alluminio.it
The fixing holes are prepared for metric threading by rolling or for the use of self-tapping screws
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
