ALUMINUM TUBES FOR PNEUMATIC CYLINDERS: LIGHT SERIES

Aluminum tubes suitable for the production of pneumatic cylinders for drives. The tubes are extruded in aluminum alloy EN-AW 6063T6  and are subsequently calibrated - broached by mechanical processing and finally anodized class 20 µm

NOTE: SPECIAL TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT after an accurate extrusion the profile is subjected to a special cold calibration process of the jacket (internal part)

Aluminum Alloy 6063 T6

Minimum mechanical characteristics: Rm = Mpa 245 Rp 0.2 = Mpa 200 A% = 8 HBW = 80

Anodization:

- oxide layer thickness: class 20 µm +10/-4 (internal) +10/-8 (external)

- oxide layer hardness: 420 HV25 +130/-30

Roughness internal diameter: -Ra radial = 0.6 µm -Rmax radial = 9 µm -Ra axial = 0.4 µm

Full range of our aluminium profiles available on the website: www.omar-alluminio.it

Aluminum tubes for pneumatic cylinderstube for pneumatic cylinders LIGHT series

light series quarry

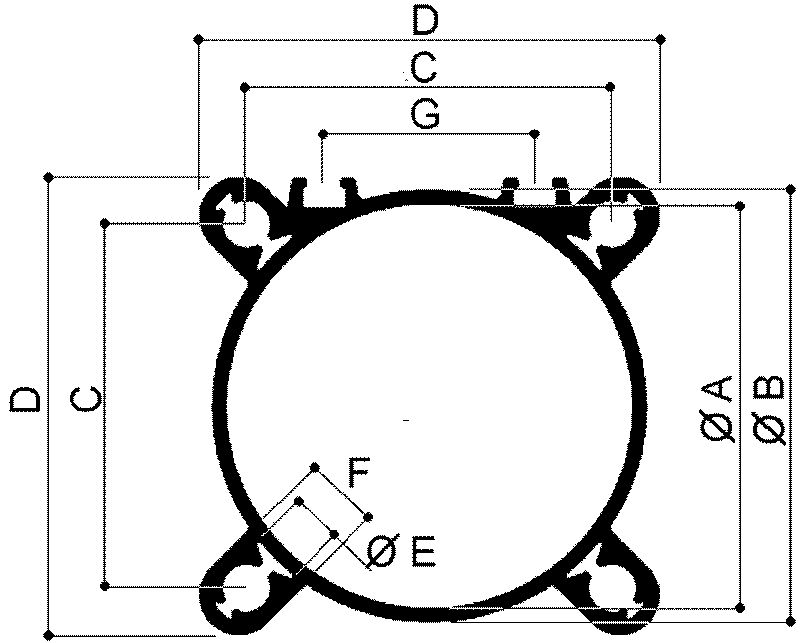

Item Drawing

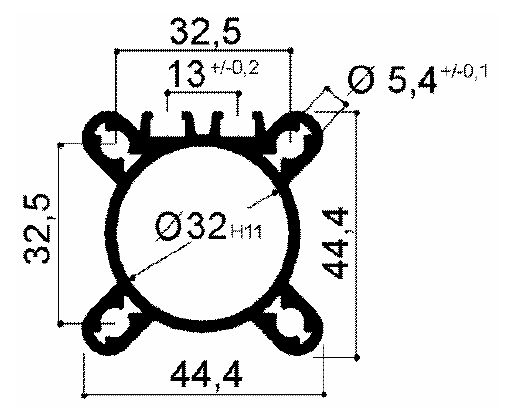

PNLG32 aluminum tube for light series diameter 32

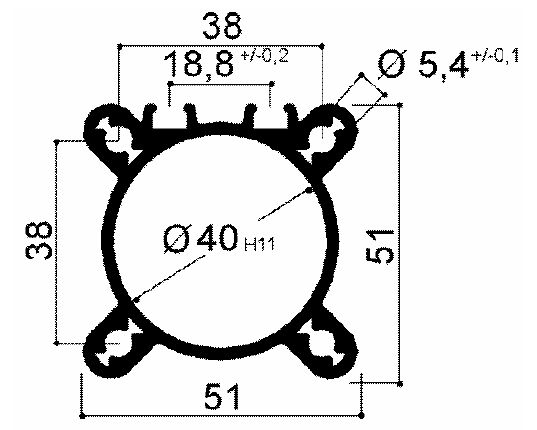

PNLG40 profile for light pneumatic cylinders diameter 40

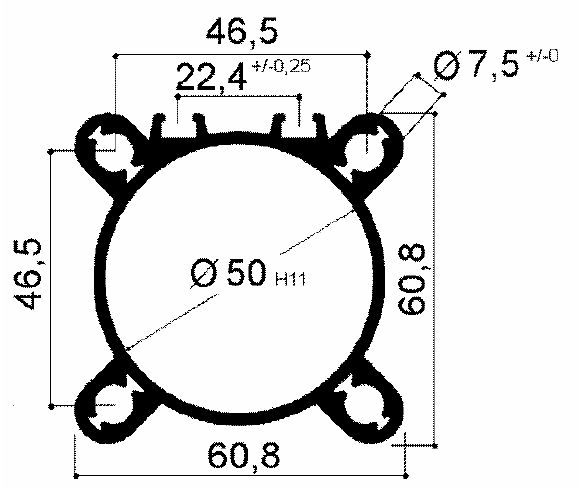

PNLG50 Aluminum tube for pneumatic cylinders series 50

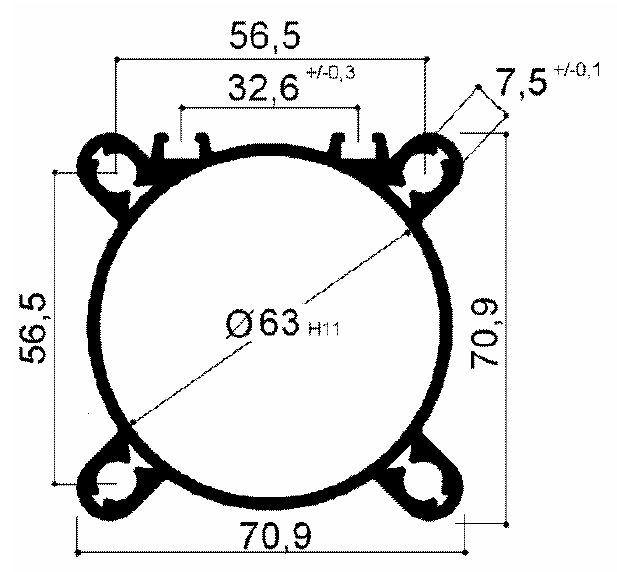

PNLG63 light series profile diameter 80 for pneumatic cylinders

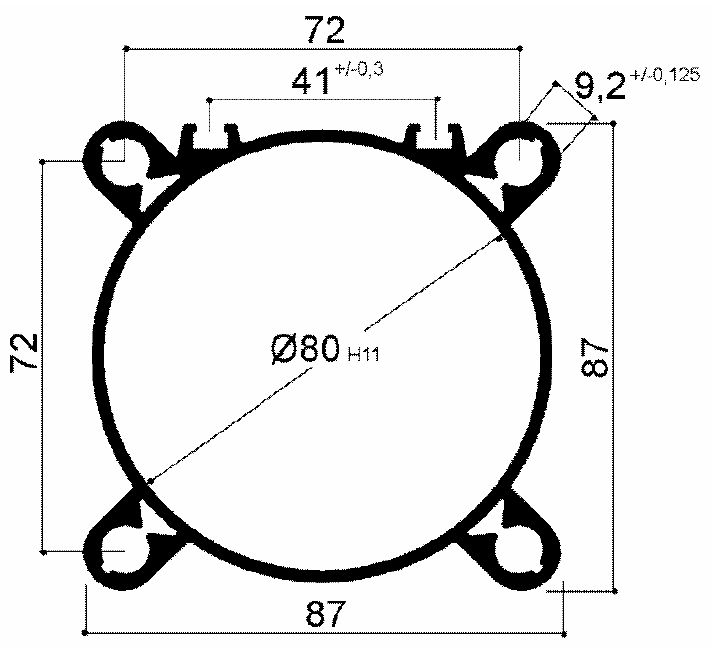

PNLG80 80 diameter profile for the production of light pneumatic cylinders

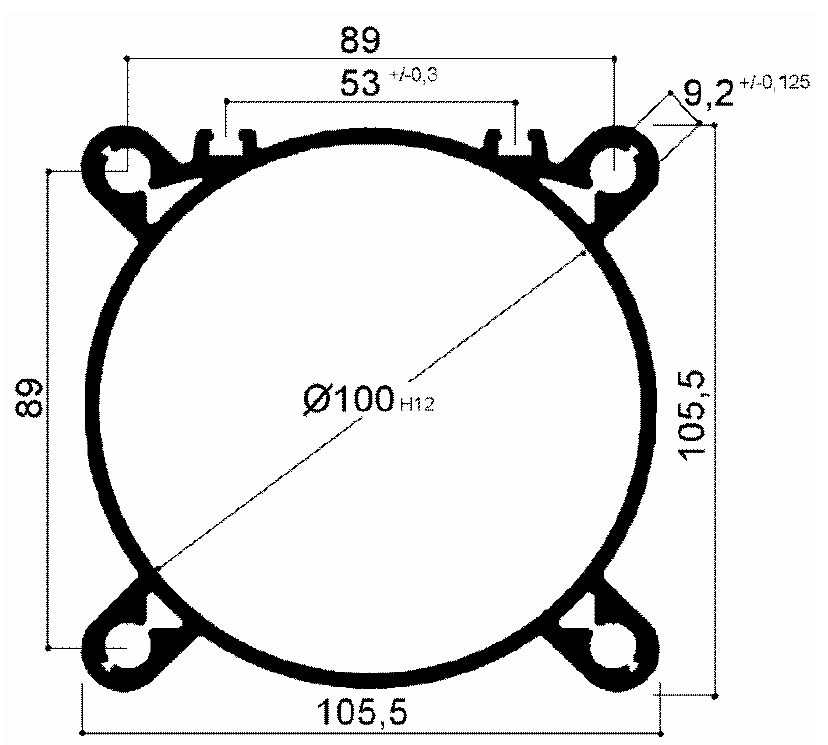

PNLG100 profile for the production of pneumatic cylinders diameter 100mm

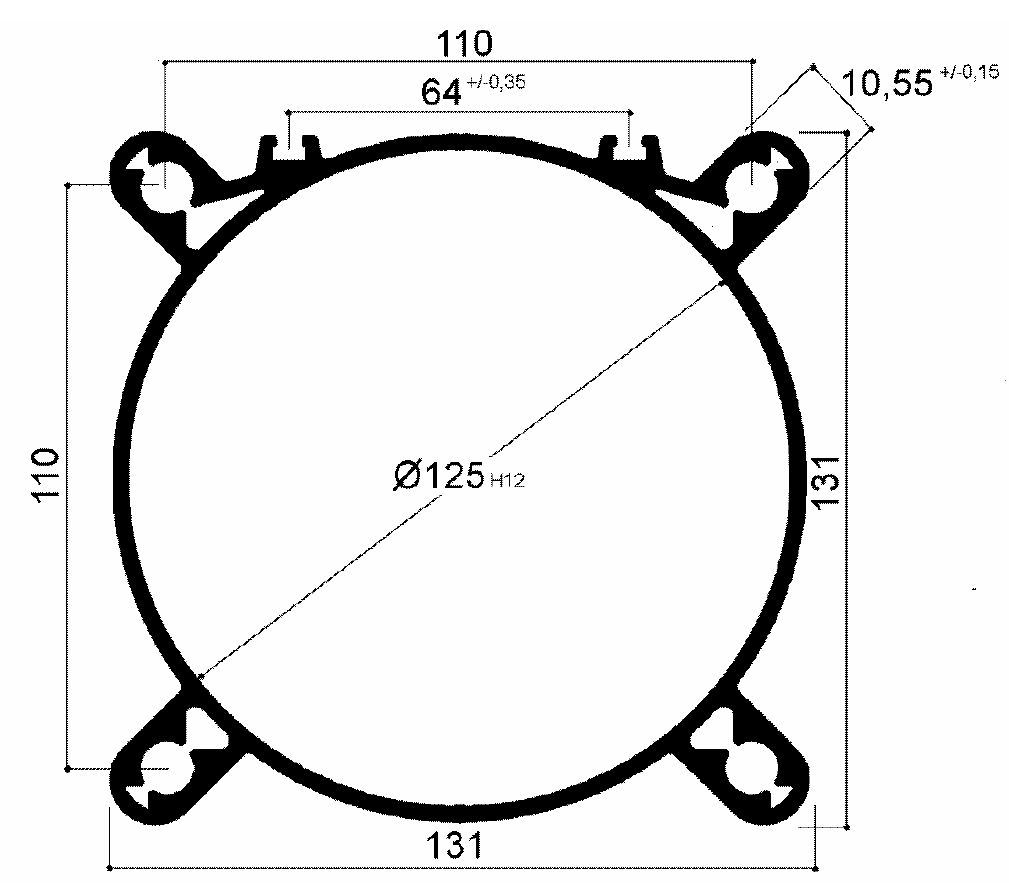

PNLG125 125mm diameter tube for the production of pneumatic cylinders
