ALUMINUM TUBES FOR PNEUMATIC CYLINDERS: SERIES 89 with slotted holes for tie rods

Aluminum tubes suitable for the production of pneumatic cylinders for drives. These tubes are extruded, in aluminum alloy EN-AW6060T6 / EN-AW6063T6 subsequently calibrated - broached by mechanical processing and finally anodized class 20 µm

NOTE: SPECIAL TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT after an accurate extrusion the profile is subjected to a special cold calibration process of the jacket (internal part)

Minimum mechanical characteristics:

Rm= Mpa 245 Rp0,2= Mpa 200 A5%=8 HBW=80

Anodization:

- oxide layer thickness: class 20 µm +10/-4 (internal) +10/-8 (external)

- oxide layer hardness: 420 HV25 +130/-30

Roughness of internal diameter:

Roughness of internal diameter: -Ra radial ≤ 0.6 µm -Rmax radial ≤ 9 µm -Ra axial ≤ 0.4 µm

Full range of our aluminium profiles available on the website: www.omar-alluminio.it

Aluminum tubes for pneumatic cylinders

The fixing holes are designed for the insertion of steel tie rods. Detail of tie rod slot (dimensions A and B are specified under each item code)  detail of the 89 series profile buttonhole

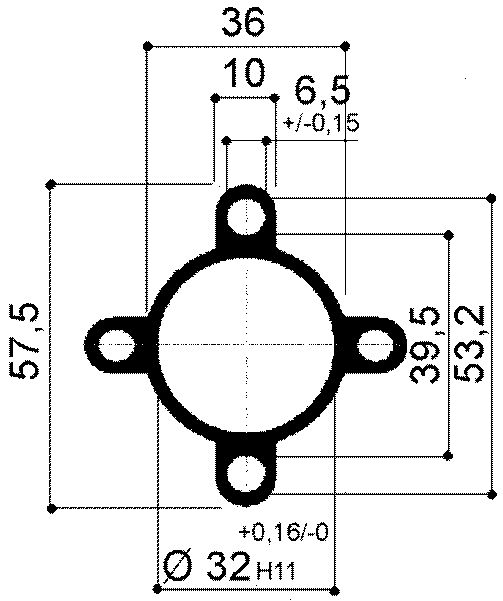

PNM8932

n.4 slots A=6.5 B=6.85

for tie rod seat
Aluminum profile for pneumatic cylinders

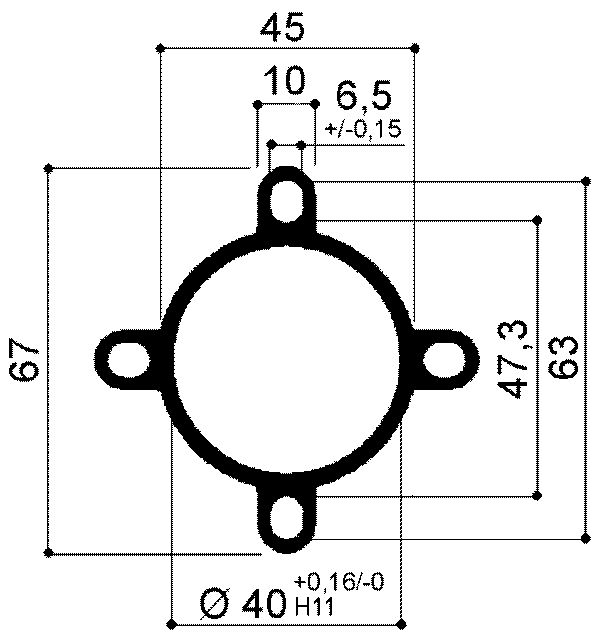

PNM8940

n.4 slots A=6.5 B=7.85

for tie rod seat
aluminum profile for the production of pneumatic cylinders

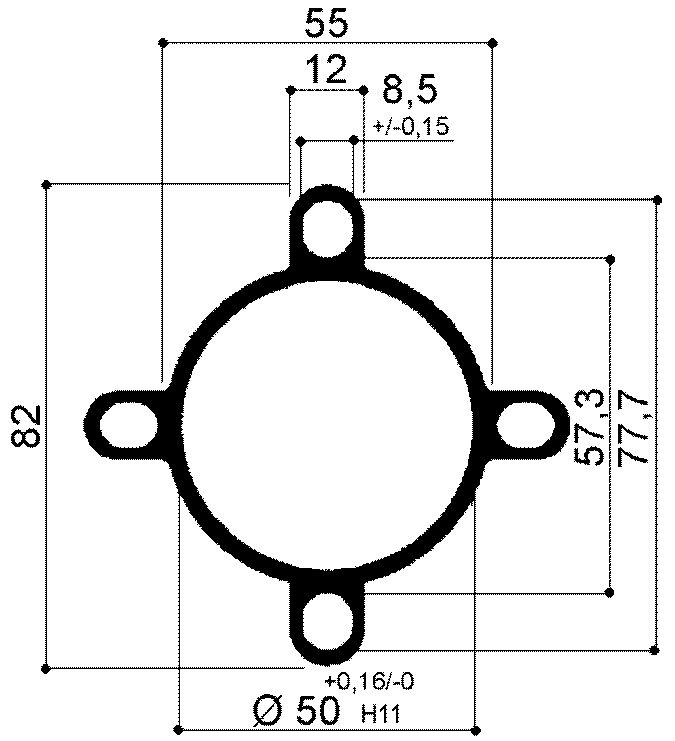

PNM8950

n.4 slots A=8.5 B=10.20

for tie rod seat
aluminum tube for the production of pneumatic cylinder liners

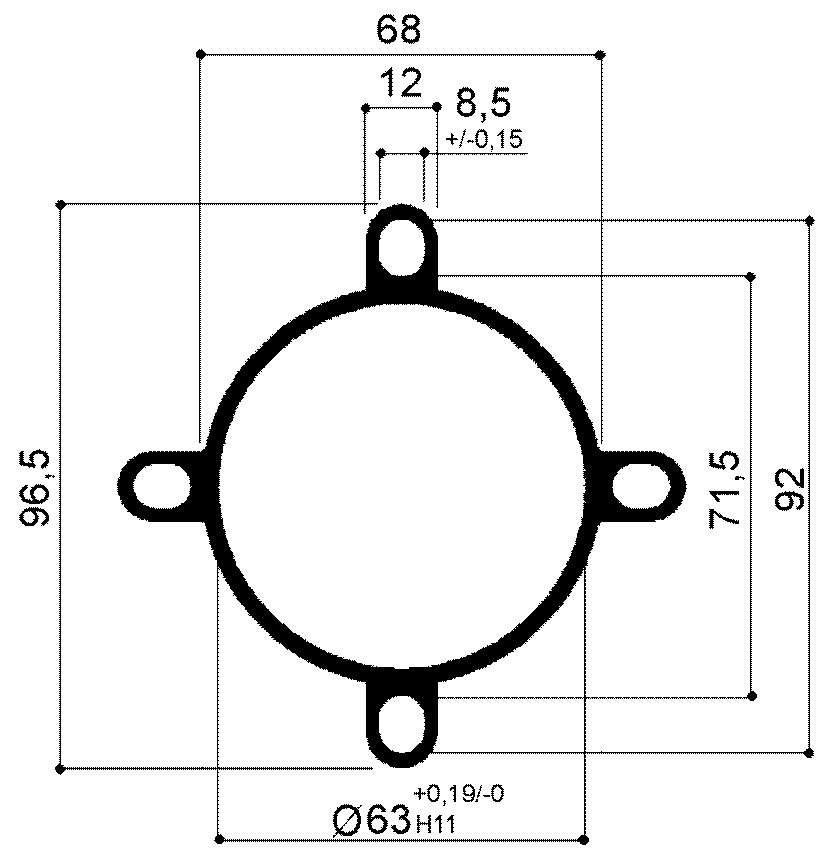

PNM8963

n.4 slots A=6.5 B=10.25

for tie rod seat
Aluminum profile for pneumatic cylinders bore diameter 63mm

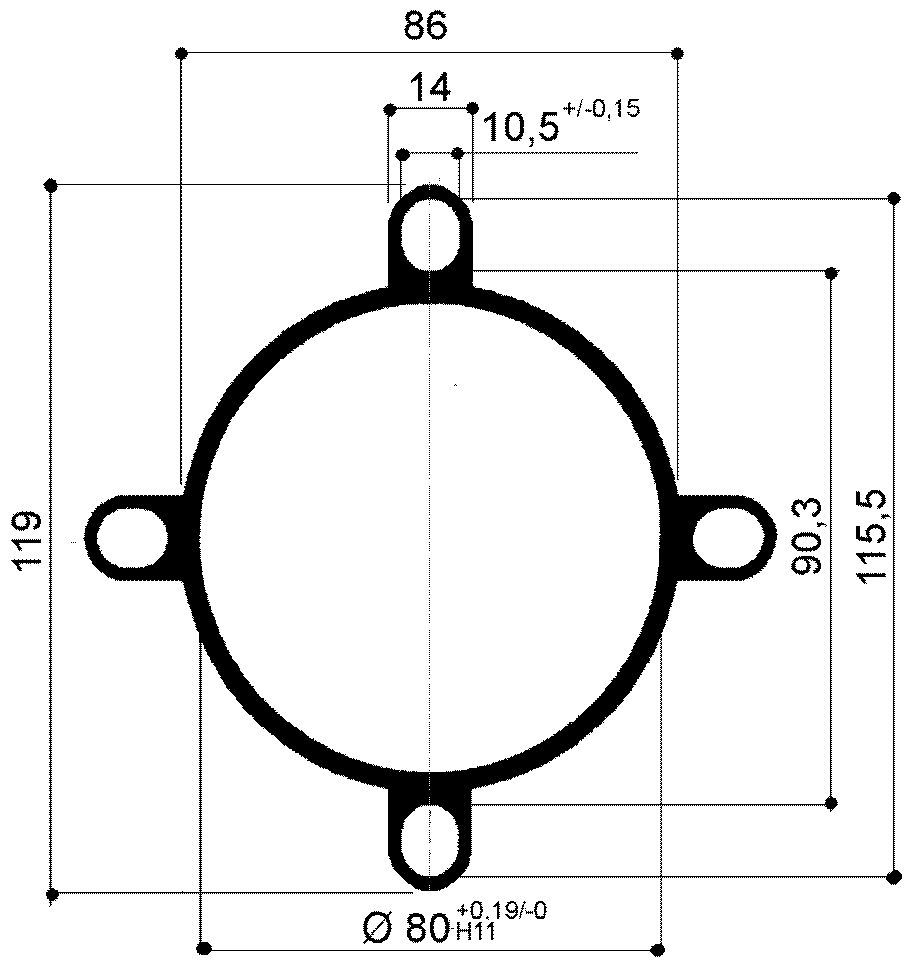

PNM8980

n.4 slots A=10.5 B=12.60

for tie rod seat
Aluminum tube for pneumatic cylinders with slot-shaped holes for tie rods diameter 80mm

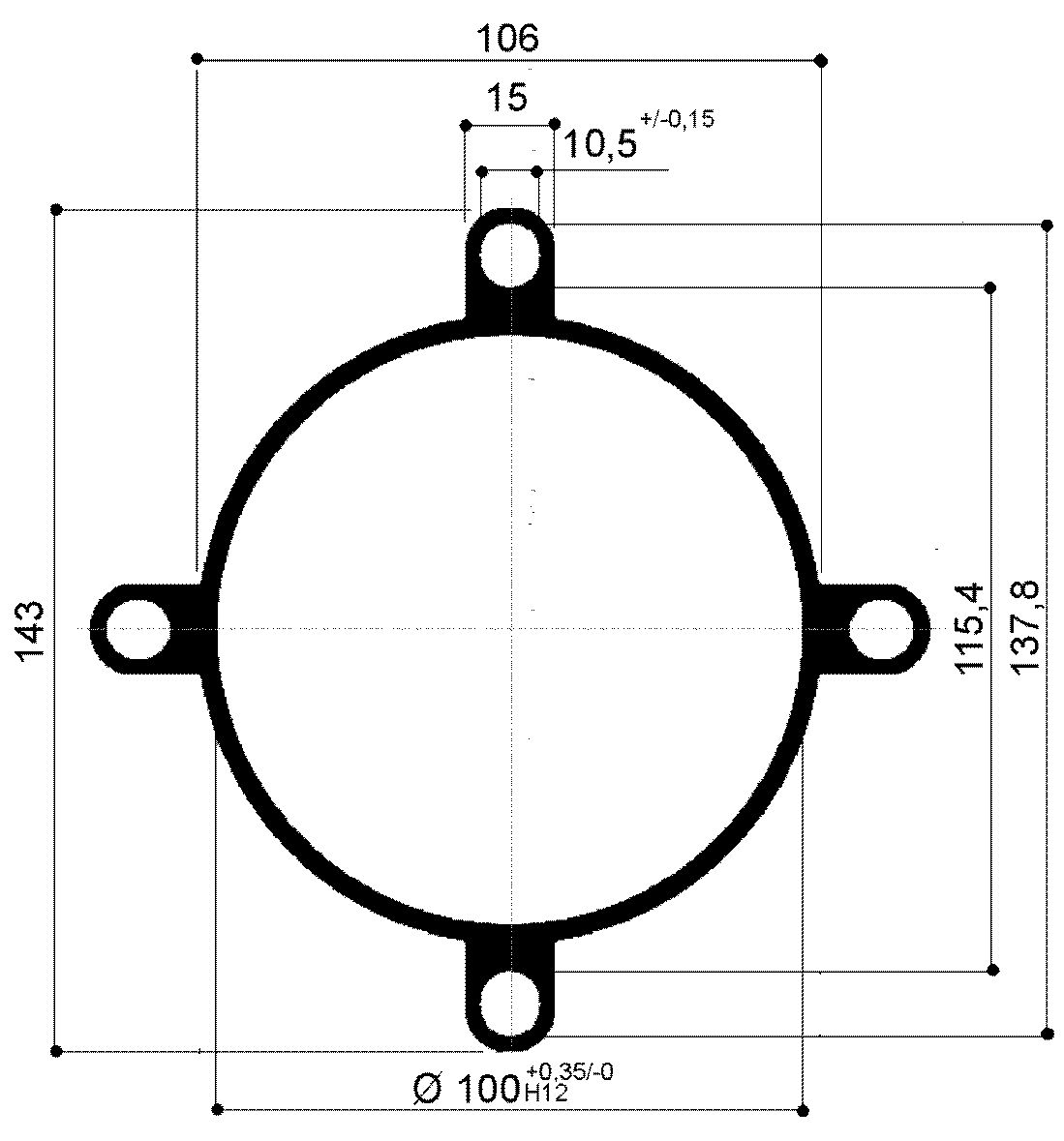

PNM89100

n.4 slots A=10.5 B=11.20

for tie rod seat
Aluminum slotted hole shirt for pneumatic cylinder bore 100mm

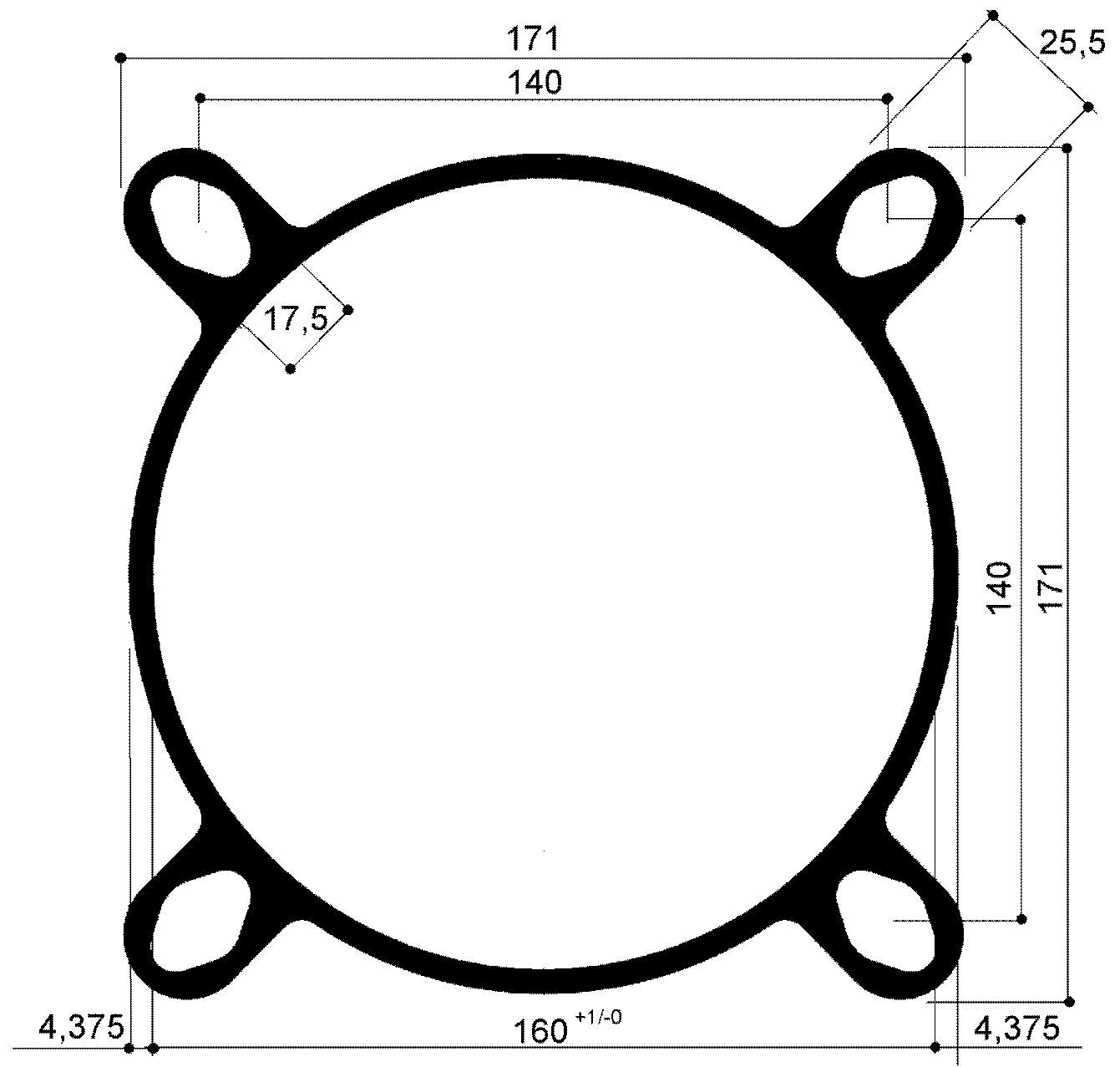

PNM89160

n.4 buttonholes for tie rod seat
pneumatic cylinders diameter 160mm: aluminum profile

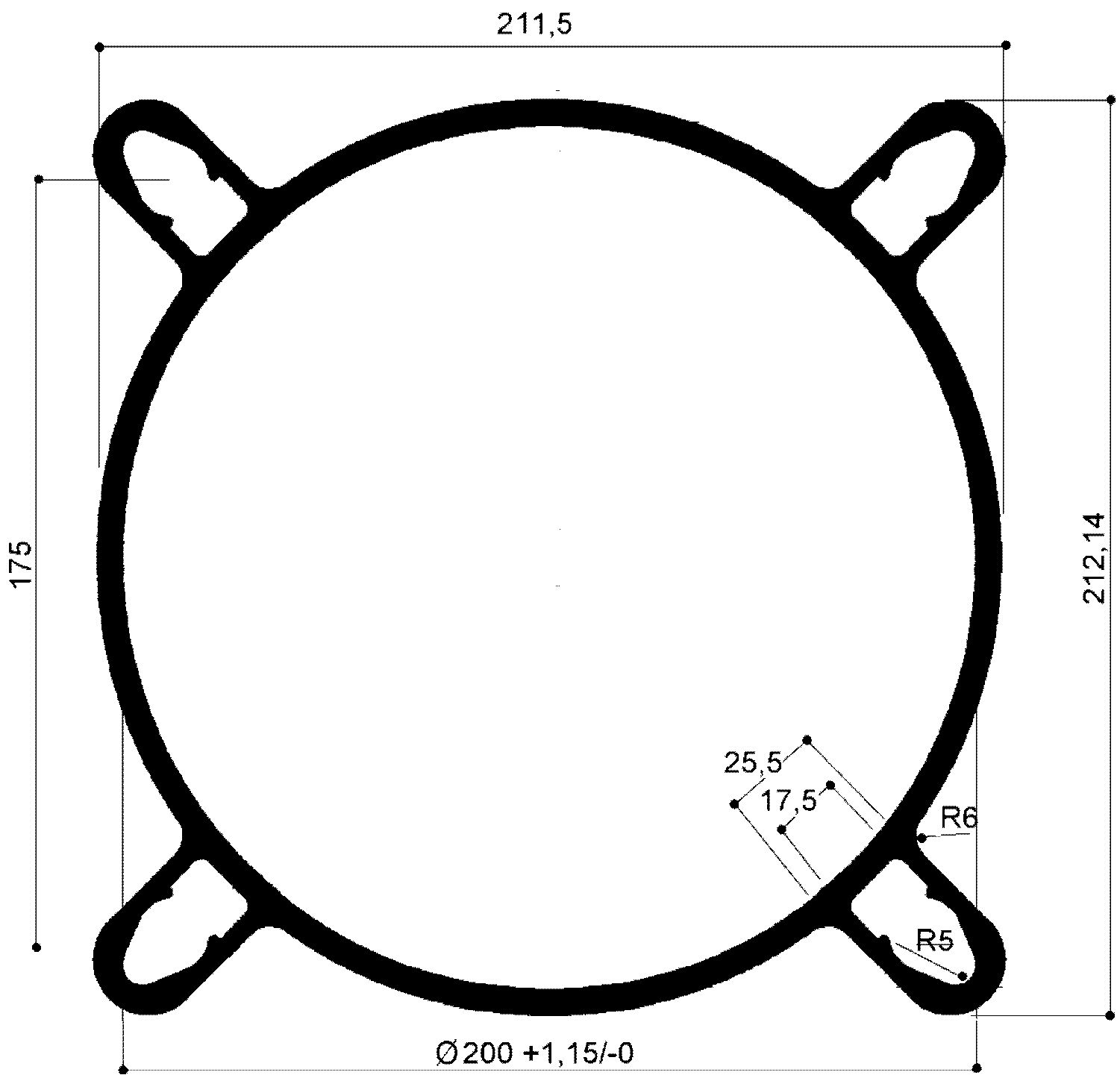

PNM89200

n.4 buttonholes for tie rod seat
pneumatic cylinders diameter 200mm: aluminum profile
