ALUMINUM TUBES FOR PNEUMATIC CYLINDERS: SERIES 90 ISO 15552

Aluminum tubes suitable for the production of pneumatic cylinders for drives. These tubes are extruded, in aluminum alloy EN-AW6063T6  subsequently calibrated - broached by mechanical processing and finally anodized class 20 µm

NOTE: SPECIAL TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT after an accurate extrusion the profile is subjected to a special cold calibration process of the jacket (internal part). The profiles of the 90 series have holes placed on the ears of the profile suitable for metric threading by rolling

Minimum mechanical characteristics:

Rm= Mpa 245 Rp0,2= Mpa 200 A5%=8 HBW=80

Anodizing:

- oxide layer thickness: class 20 µm +10/-4 (internal) +10/-8 (external)

- oxide layer hardness: 420 HV25 +130/-30

Roughness of internal diameter:

Roughness of internal diameter: -Ra radial ≤ 0.6 µm -Rmax radial ≤ 9 µm -Ra axial ≤ 0.4 µm



Full range of our aluminium profiles available on the website: www.omar-alluminio.it

Aluminum tubes for pneumatic cylinders

The fixing holes are prepared for metric threading by rolling or for the use of self-tapping screws.

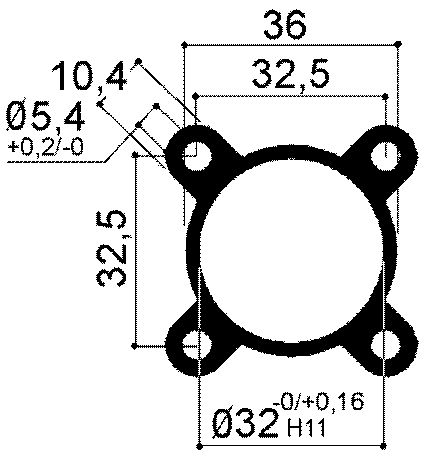

PNM9032
Aluminum profile for pneumatic cylinders

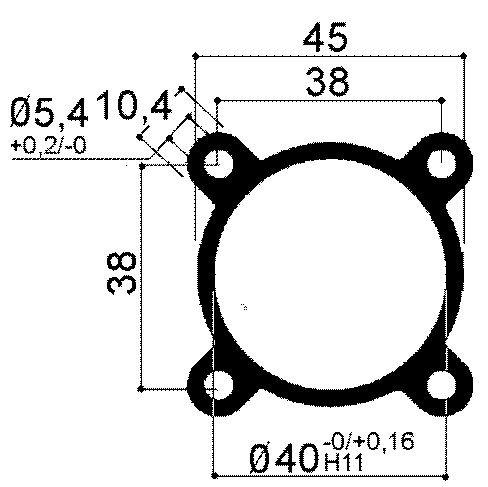

PNM9040
aluminum profile for the production of pneumatic cylinders

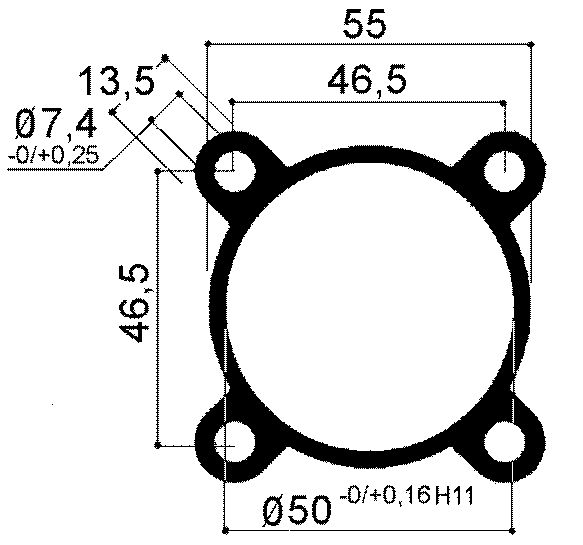

PNM9050
aluminum tube for the production of pneumatic cylinder liners

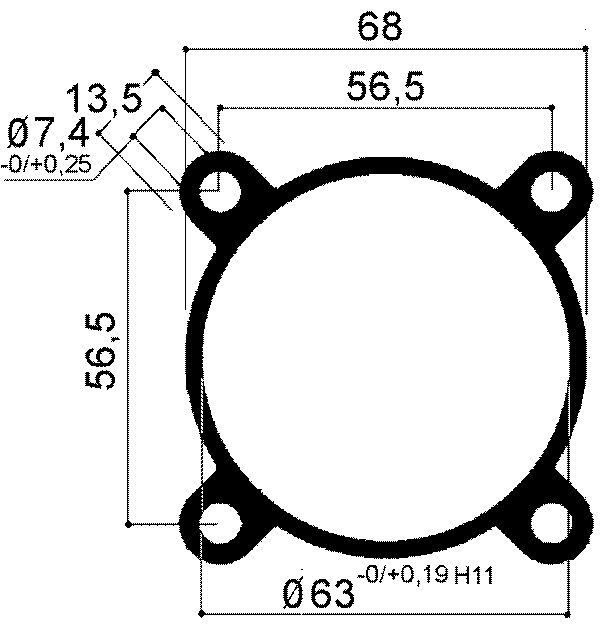

PNM9063
Aluminum profile for pneumatic cylinders bore diameter 63mm

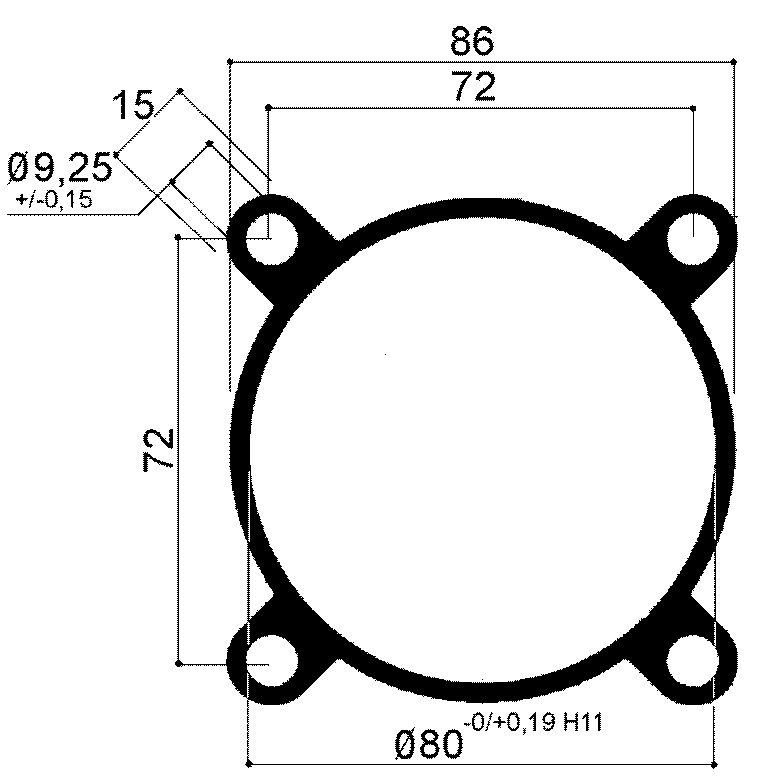

PNM9080
Aluminum tube for pneumatic cylinders diameter 80mm

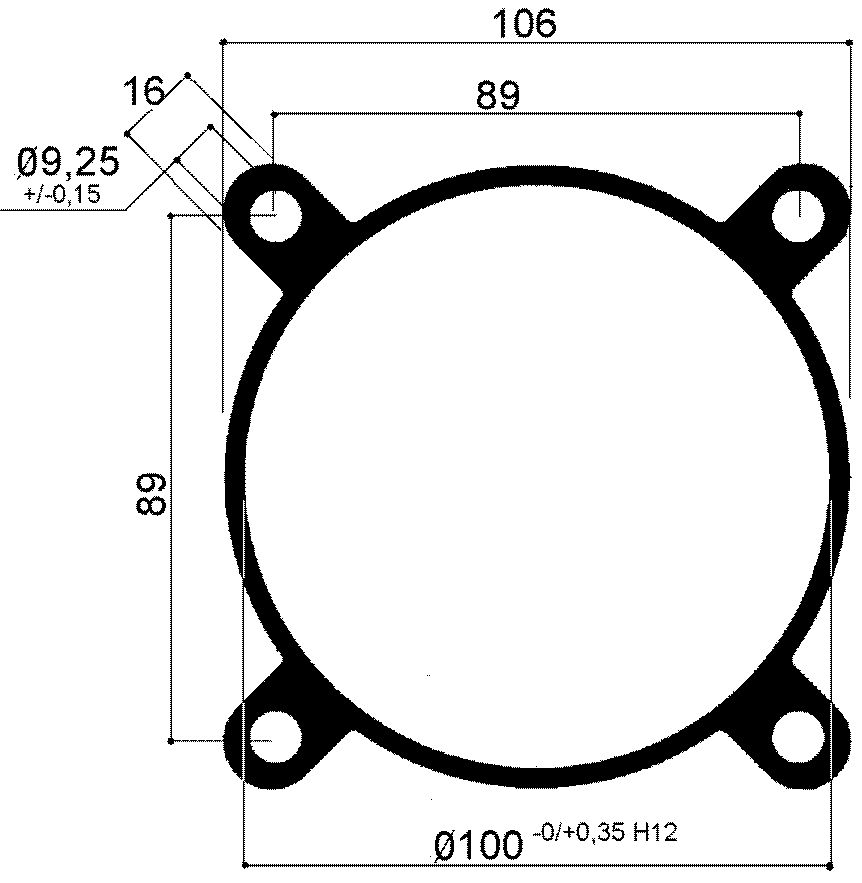

PNM90100
Aluminum jacket for pneumatic cylinder bore 100mm
