CONTAINERS FOR ELECTRONIC ALUMINUM 43700 - ALUMINUM MODULAR CASE FOR ELECTRONIC INSTRUMENTATION 43700

Completely closed base panels, with countersunk holes for fixing to the container body, in natural oxidized 5005 aluminum and protected with film READY IN STOCK for making prototypes which will follow:

Aluminum panels according to customer design

- ROUGH

-OXIDIZED: black, silver and colors upon request by the customer

Aluminium front/rear panels for:

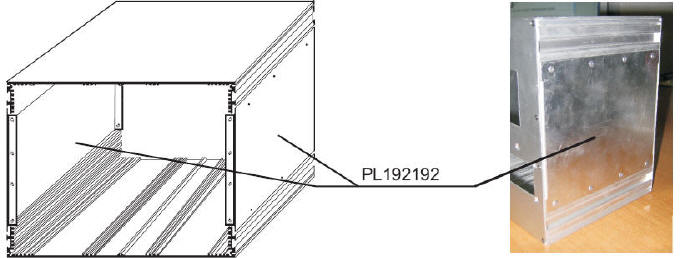

Panel 192x192 (out of scale drawings)

Available accessories :

	self-tapping screws for fixing frames or panels

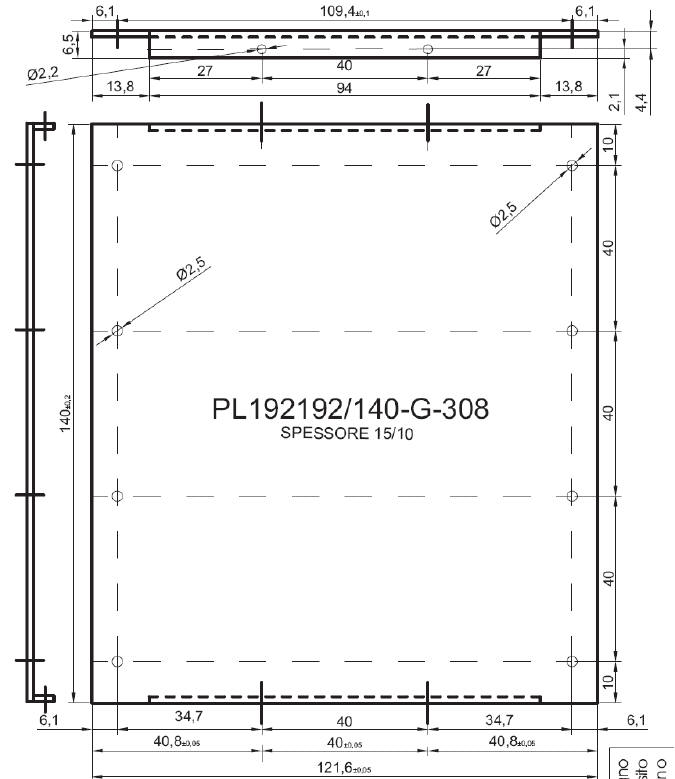

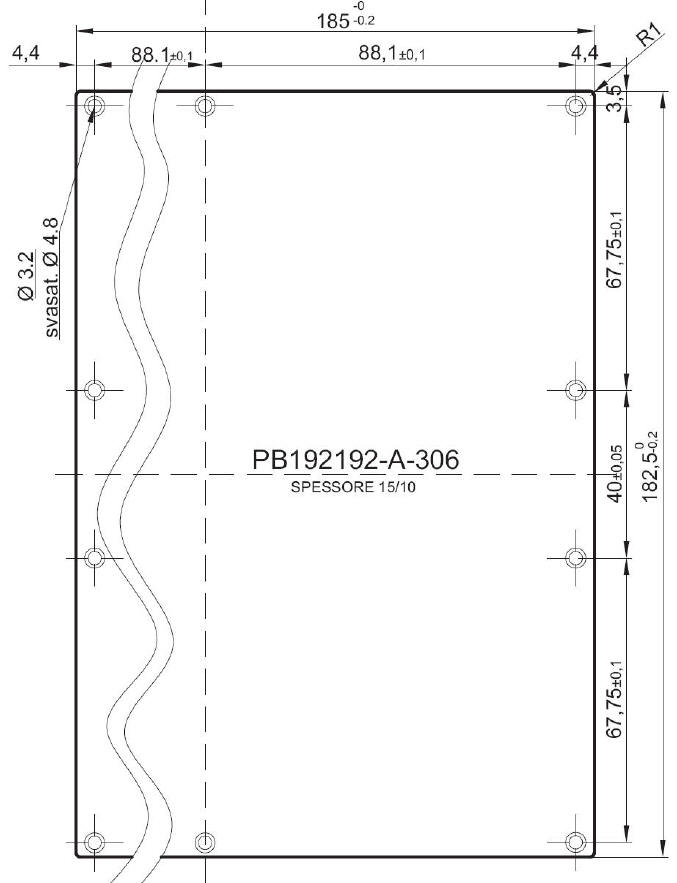

	PB192192-A-306   The drawing in CAD format is available for download here   PL192192-A-308 The drawing in CAD format is available for download here

To be used with container body 192x192
