Modular profiles 20x20 slot 5
Pdf catalog of modular profiles
Series 20 modular aluminum profiles: we have
ready for delivery in 6.1 m bars of anodized 20x20 profiles, with
slots and relative accessories such as aluminum brackets, two or
three-way aluminum joints, plastic finishing caps, etc. .
20 series aluminum profiles
Modular aluminum profiles 20x20
Modular profiles 30x30 slot 8
Pdf catalog of modular profiles
30 series modular aluminum profiles: we have
prompt delivery of aluminum profiles in bars of approximately 30x30
meters (30x30 with 1 slot, 30x30 with 2 slots, 30x30 with 3 slots,
30x30 with 4 slots), 30x30 rounded, 30x60 , 30x70 , 60x60 etc.. All
with 8 mm slot. We also supply a complete series of accessories for
joining these profiles in order to create the complete structure,

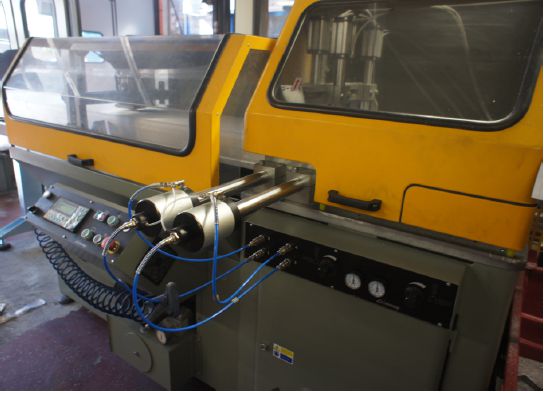

the profile cutting service is also available
30
series aluminum profiles
Modular
aluminum profiles 30x30

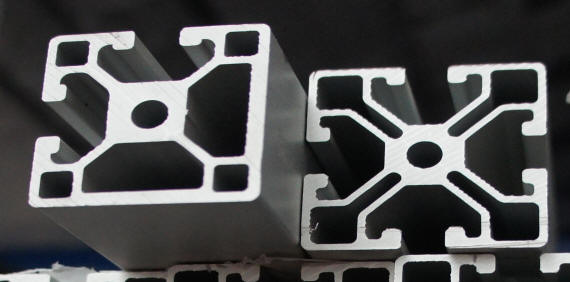

Modular profiles 40x40 slot 8
Pdf catalog of modular profiles
40 series
modular aluminum profiles: we have ready for delivery aluminum
profiles in anodized bars measuring 6.1 meters 40x40 (40x40 with 1
slot, 40x40 with 2 slots, 40x40 with 3 slots, 40x40 with 4 slots),

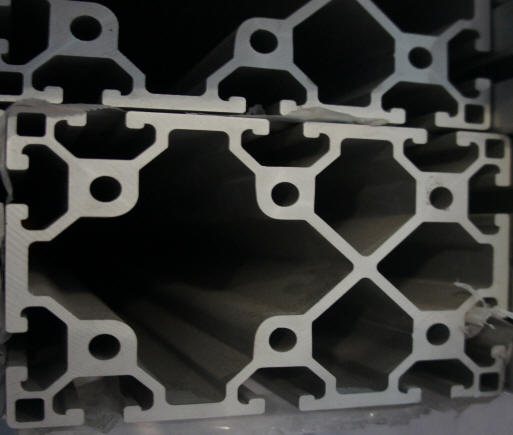

40x40 rounded , 40x80, 80x80, 120x40, 120x80, 160x80, 200x120. All
with 8mm hollow. We can supply a complete series of junction
accessories for these profiles in order to create the complete
structure. The profiles are supplied in bars or already cut to size
40 series aluminum profiles
Modular
aluminum profiles 40x40 series
Modular profiles 45x45 slot 8
Pdf catalog of modular profiles
Modular aluminum profiles with keyway, 45
series: we have ready delivery of aluminum profiles in 6.1 m
andodized bars 45x45 (45x45 4 keyways), 45x90, 45x135, 90x90,
180x90. The series of 45x45 modular profiles is also available with
both 8mm and 10mm slots. We also have a complete series of
accessories for joining profiles in order to create the complete
structure.
Aluminum profiles 45 series
Modular
aluminum profiles 45x45 series
Accessories for modular profiles
Accessories pdf catalog for modular aluminum profiles
Complete series of junction accessories for
modular profiles, we have various types of aluminum brackets,
threaded sliders, finishing caps for profiles, accessories for
profile extensions, etc.
Accessories for modular profiles
Aluminum profiles for pneumatic cylinders
Pdf catalog profiles for pneumatic cylinders
Profiles in anodized aluminum tubes for the
construction of pneumatic cylinders, with specific technical
characteristics high quality product: after careful extrusion the
profile is subjected to a special cold calibration process of the
jacket (internal part). Thickness of the oxide layer: class 20 µ
with hardness 420HV25
