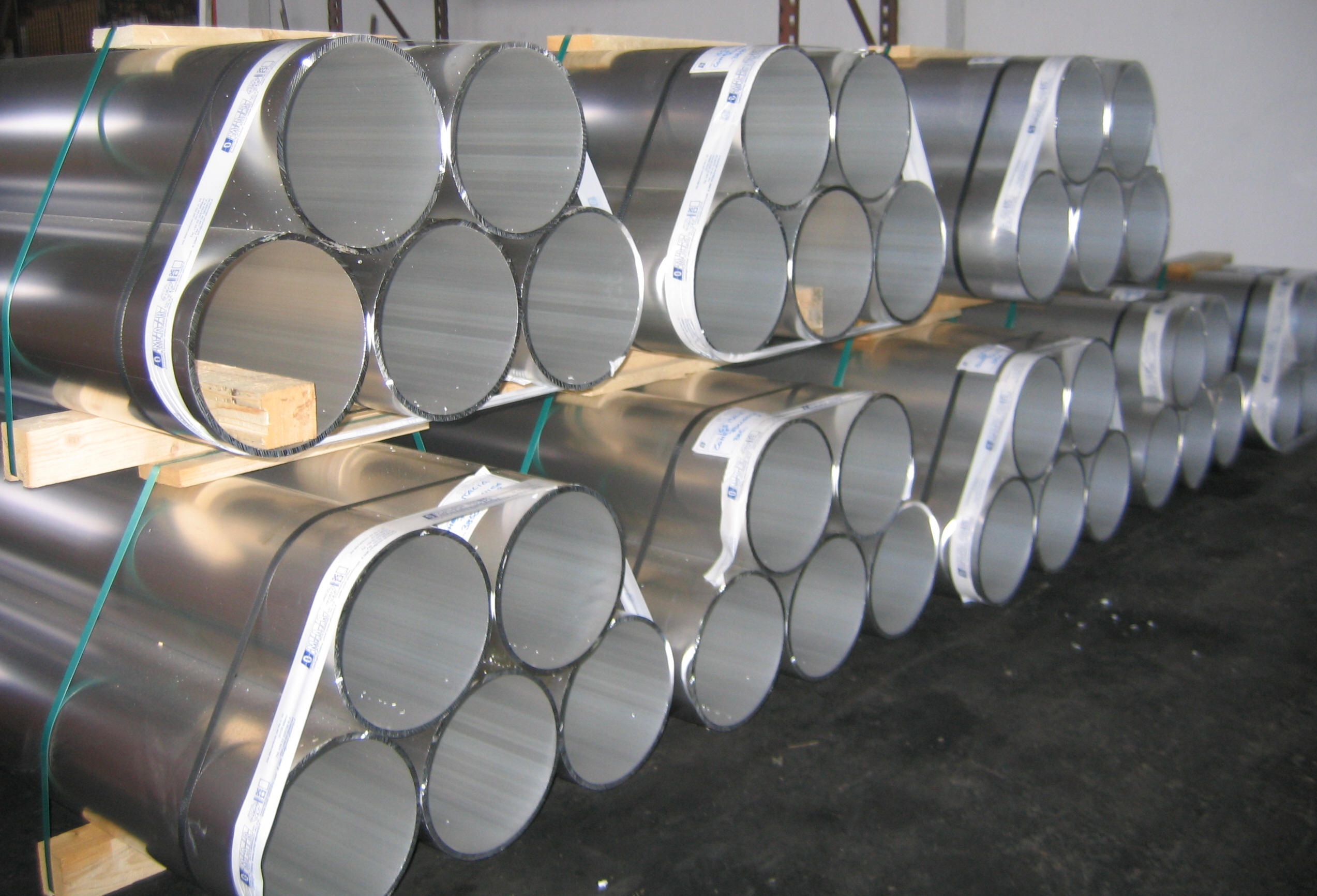

DIN EN 755-8 ex DIN59705 Aluminum profiles for pneumatic cylinders / Aluminum calibrated tubes for pneumatic cylinders



ALUMINUM PROFILES WITH SPECIFIC TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT After careful extrusion the profile is subjected to a special cold calibration process of the jacket (internal part)

6060 T6 / 6063 T6 Aluminum Alloy Minimum mechanical characteristics:

Rm = Mpa 245 Rp 0,2 = Mpa 200 A% = 8 HBW = 80

Anodizing: - oxide layer thickness: class 20 μm +10/-4 (internal) +10/-8 (external) - oxide layer hardness: 420 HV25 +130/-30 Internal diameter roughness: -Ra radial ≤ 0,6 μm -Rmax radial ≤ 9 μm -Ra axial ≤ 0,4 μm -* Ra radial ≤ 0,8 μm -* Rmax radial ≤ 10 μm -* Ra axial ≤ 0,5 μ

Complete range of our aluminum profiles available on the website: www.omar- Alluminio.it
aluminum profiles for pneumatic cylinders aluminum tubes for pneumatic cylinders
schema tubo alluminio

Code

Diameter (mm)

Toll. Dia. interno

Weight (kg/m)

PN1216 *

12x16

H11

0,237

PN1620 *

16x20

H11

0,305

PN2024 *

20x24

H11

0,373

PN2025 *

20x25

H11

0,477

PN2529

25x29

H11

0,458

PN2530 *

25x30

H11

0,583

PN3236

32x36

H11

0,576

PN3238 *

32x38

+0,2/-0

0,890

PN2540 *

35x40

+0,2/-0

0,795

PN3640 *

36x40

+0,2

0,644

PN4044 *

40x44

H11

0,712

PN4045

40x45

H11

0,900

PN5054 *

50x54

H11

0,881

PN5055

50x55

H11

1,11

PN5057 *

50x57

H11

1,588

PN5060 *

50x60

+0,25/-0

2,332

PN5560

55x60

H11

1,219

PN5660 *

56x60

H11

0,983

PN6065 *

60x65

H11

1,325

PN6368

63x68

H11

1,388

PN6570 *

65x70

H11

1,431

PN7075 *

70x75

+0,30/-0

1,537

PN7580 *

80x75

H11

1,643

PN8085 *

80x85

H11

1,749

PN8086

80x86

H11

2,111

PN8590 *

85x90

H12

1,855

PN9095 *

90x95

H12

1,961

PN9097 *

90x97

H12

2,775

PN95100 *

95x100

H12

2,067

PN100106

100x106

H12

2,621

PN105110 *

105x110

H12

2,279

PN125131

125x131

H12

3,256

PN125132

125x132

H12

3,813

PN150160 *

150x160

H12

6,752

PN160170

160x170

H13

6,996

PN200210

200x210

H14

8,692
