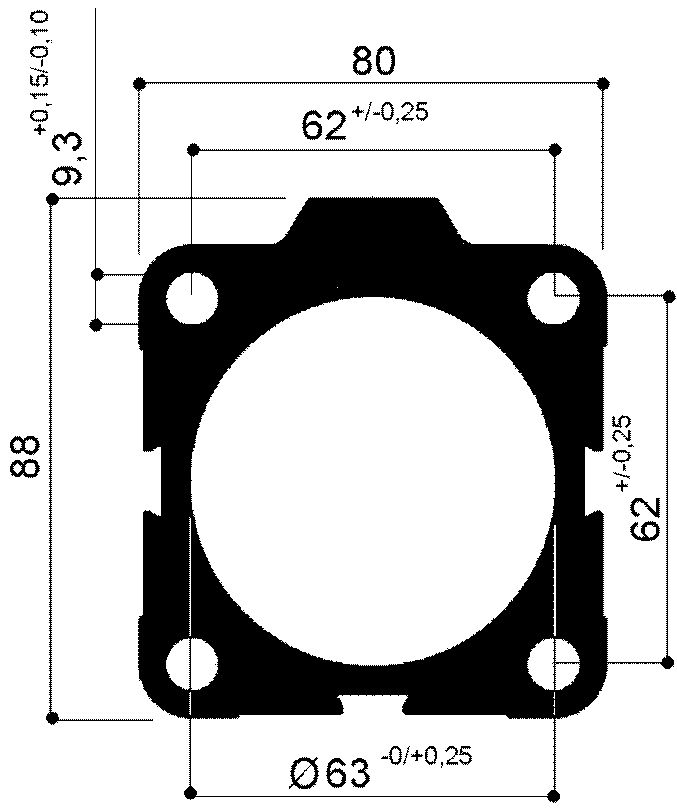

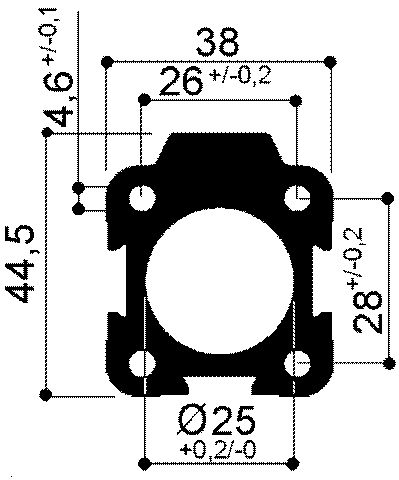

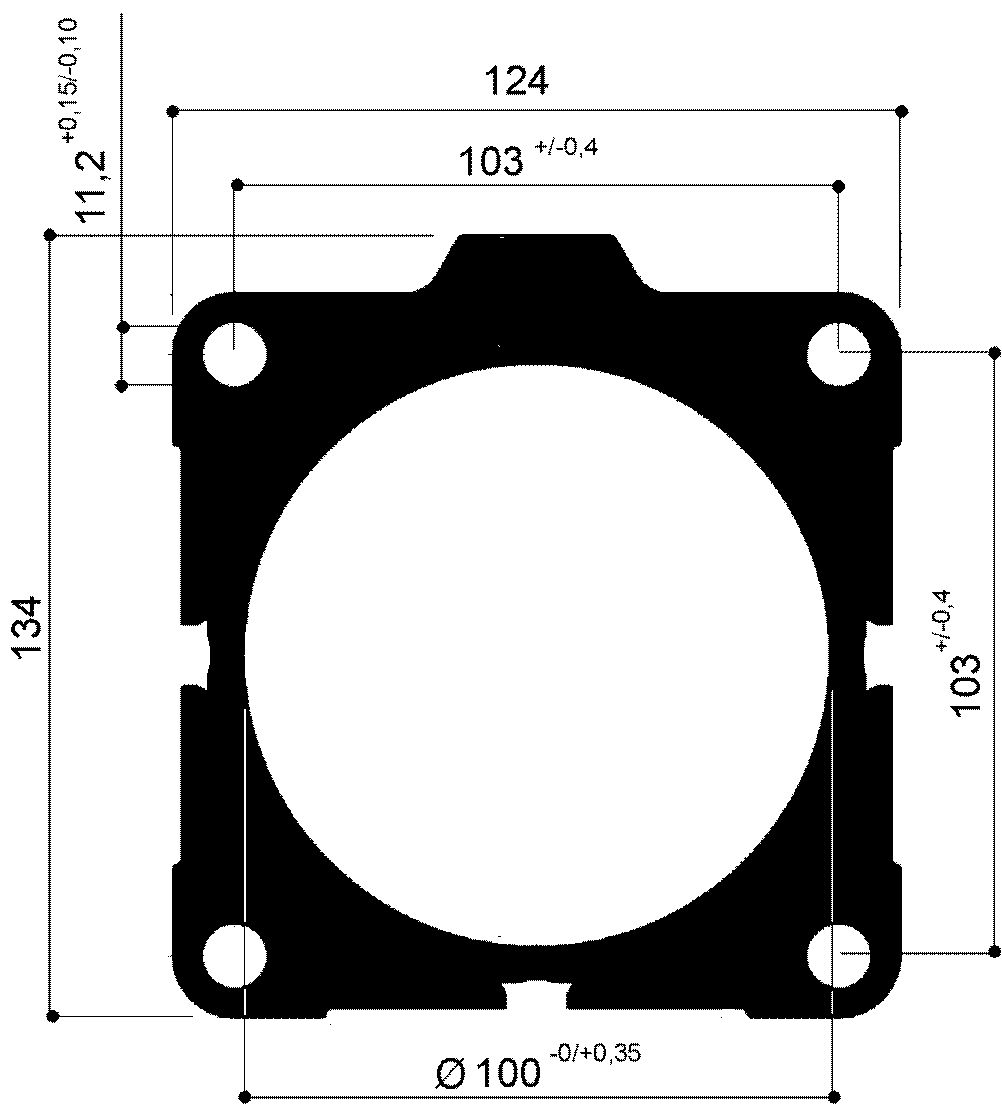

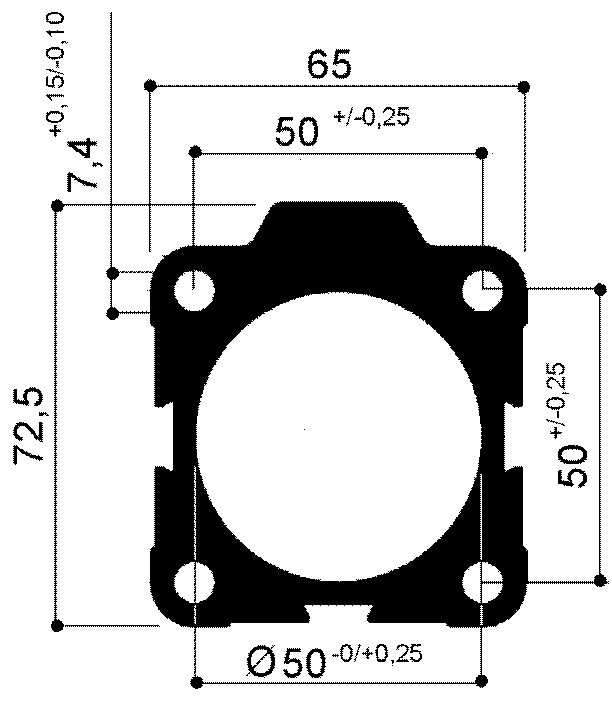

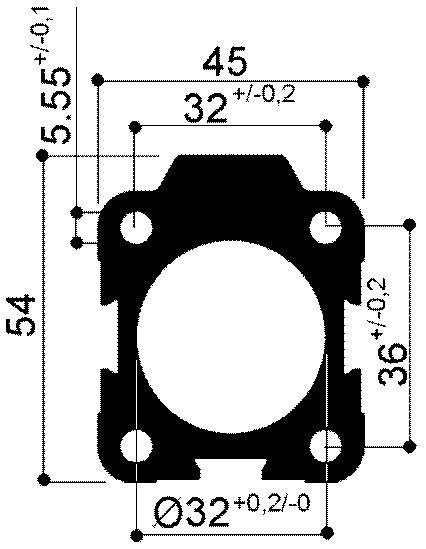

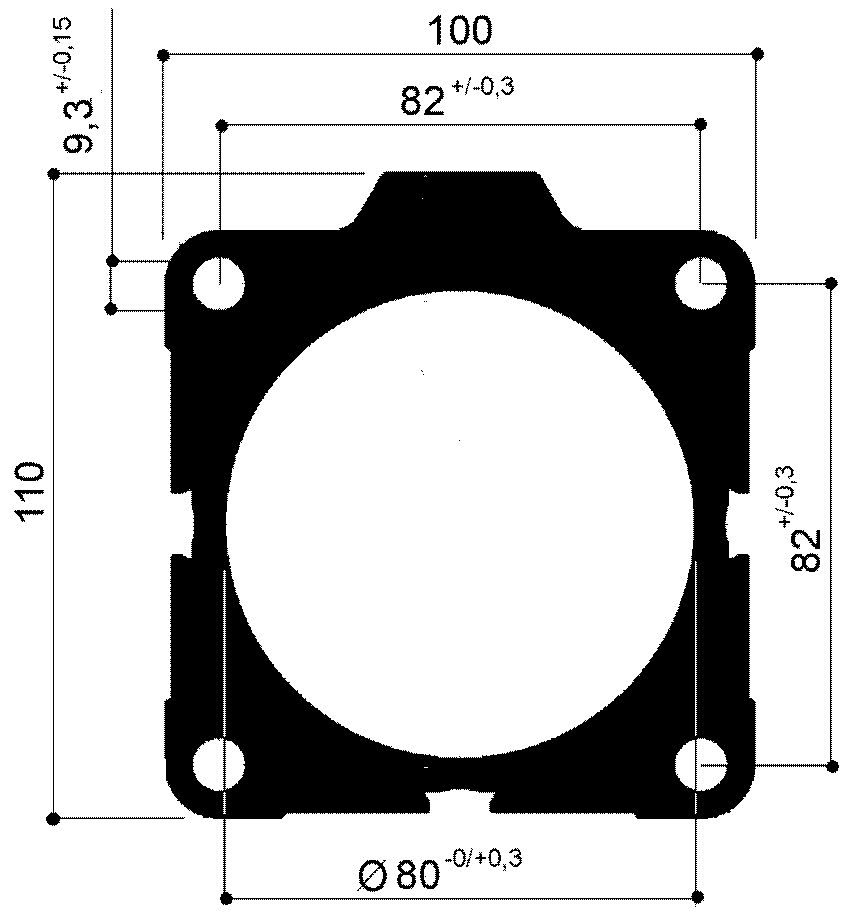

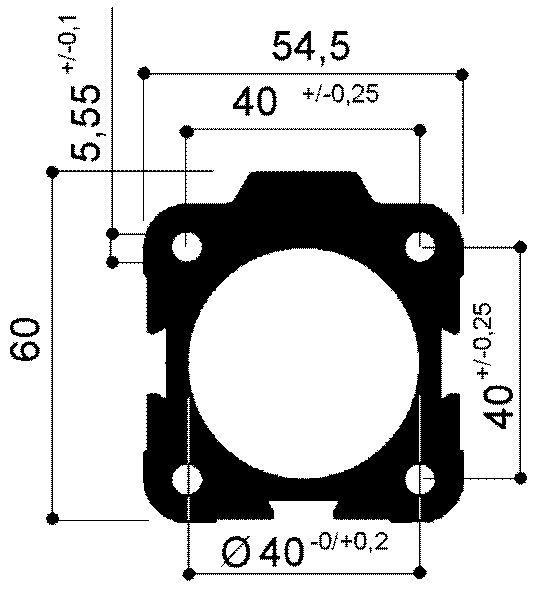

ALUMINUM TUBES FOR PNEUMATIC CYLINDERS: SHORT STROKE 94 SERIES
Aluminum tubes suitable for making pneumatic cylinders for drives. These tubes are extruded, in EN-AW6060T6 / EN-AW6063T6 aluminum alloy, subsequently calibrated - broached by mechanical machining and finally anodized class 20 µm
NOTE: SPECIFIC TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT After careful extrusion the profile is subjected to a special cold calibration process of the jacket (internal part)
Minimum mechanical characteristics:
Rm= Mpa 245 Rp0,2= Mpa 200 A5%=8 HBW=80
Anodizing:
- thickness of the oxide layer: class 20 µm +10/-4 (internal) +10/-8 (external)
- hardness of the oxide layer: 420 HV25 +130/-30
Internal diameter roughness:
-Ra radial = 0,6 µm -Rmax radial = 9 µm -Ra axial = 0,4 µm -* Ra radial = 0,8 µm -* Rmax radial = 10 µm -* Ra axial = 0,5 µm
Complete range of our aluminum profiles available on the website: www.omar-alluminio.it
The fastening holes are prepared for the metric thread by rolling or for the use of self-tapping screws
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
