ALUMINUM TUBES FOR PNEUMATIC CYLINDERS: LIGHT SERIES
Aluminum tubes suitable for making pneumatic cylinders for drives. The tubes are extruded in EN-AW 6063T6 aluminum alloy and are subsequently calibrated - broached by mechanical machining and finally anodized class 20 µm
NOTE: SPECIFIC TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT After careful extrusion the profile is subjected to a special cold calibration process of the jacket (internal part)
6063 T6 aluminum alloy
Minimum mechanical characteristics: Rm = Mpa 245 Rp 0.2 = Mpa 200 A% = 8 HBW = 80
Anodizing:
- thickness of the oxide layer: class 20 µm +10/-4 (internal) +10/-8 (external)
- hardness of the oxide layer: 420 HV25 +130/-30
Internal diameter roughness: -Ra radial = 0,6 µm -Rmax radial = 9 µm -Ra axial = 0,4 µm
Complete range of our aluminum profiles available on the website: www.omar-alluminio.it

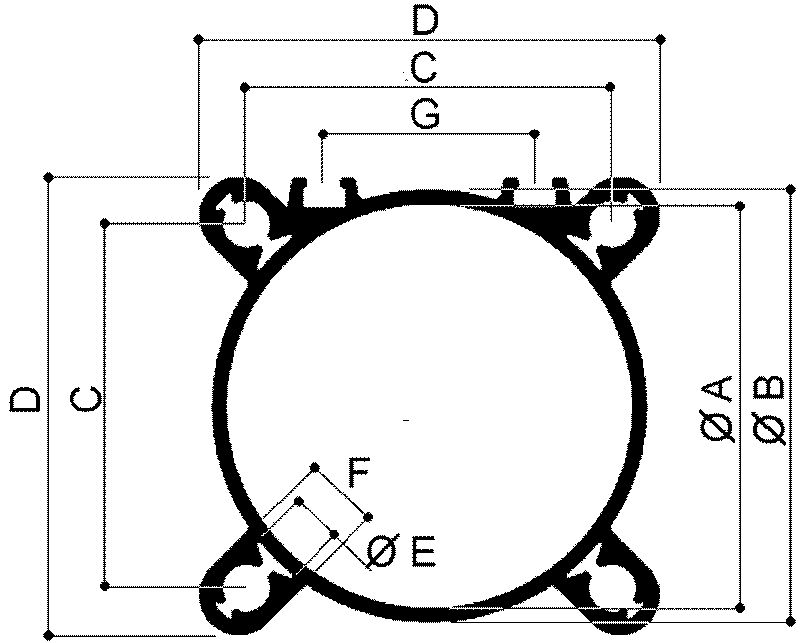

| Article | Drawing |

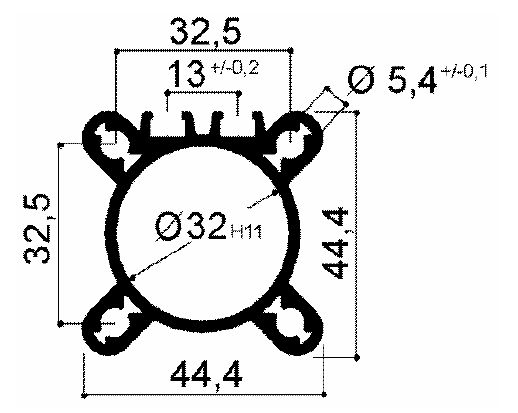

| PNLG32 |
 |

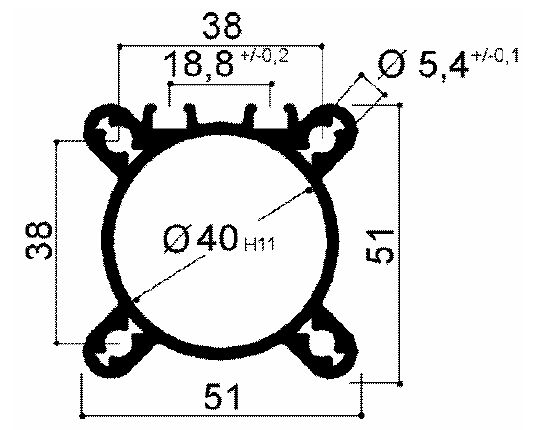

| PNLG40 |
 |

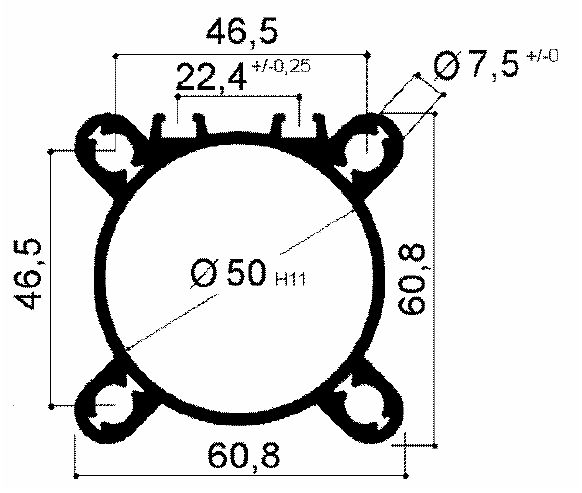

| PNLG50 |
 |

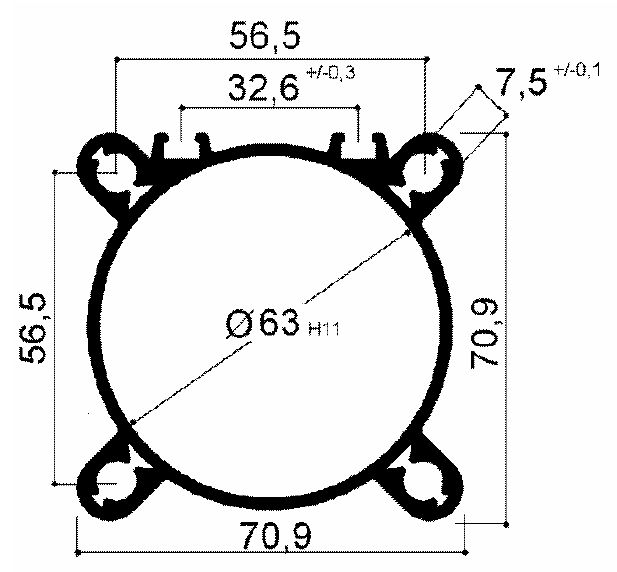

| PNLG63 |
 |

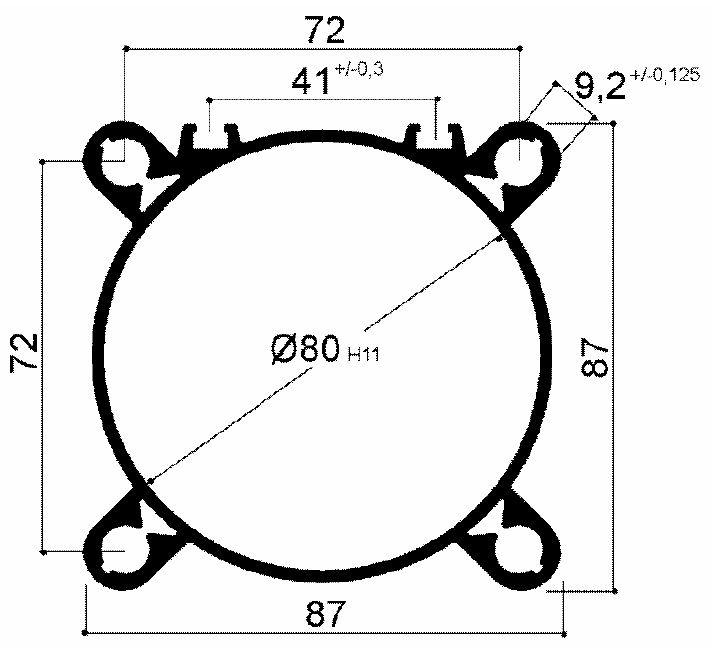

| PNLG80 |
 |

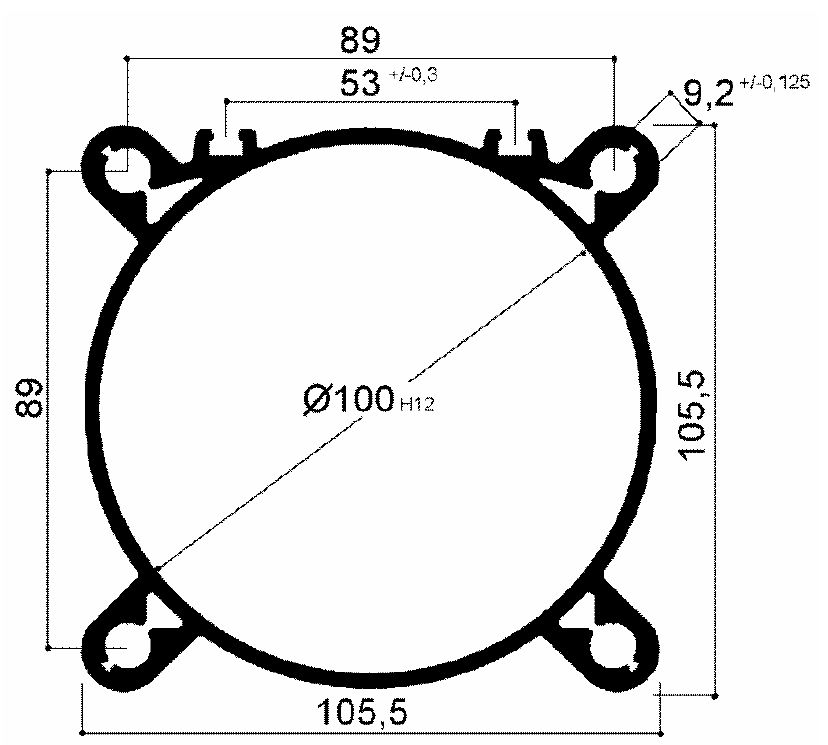

| PNLG100 |
 |

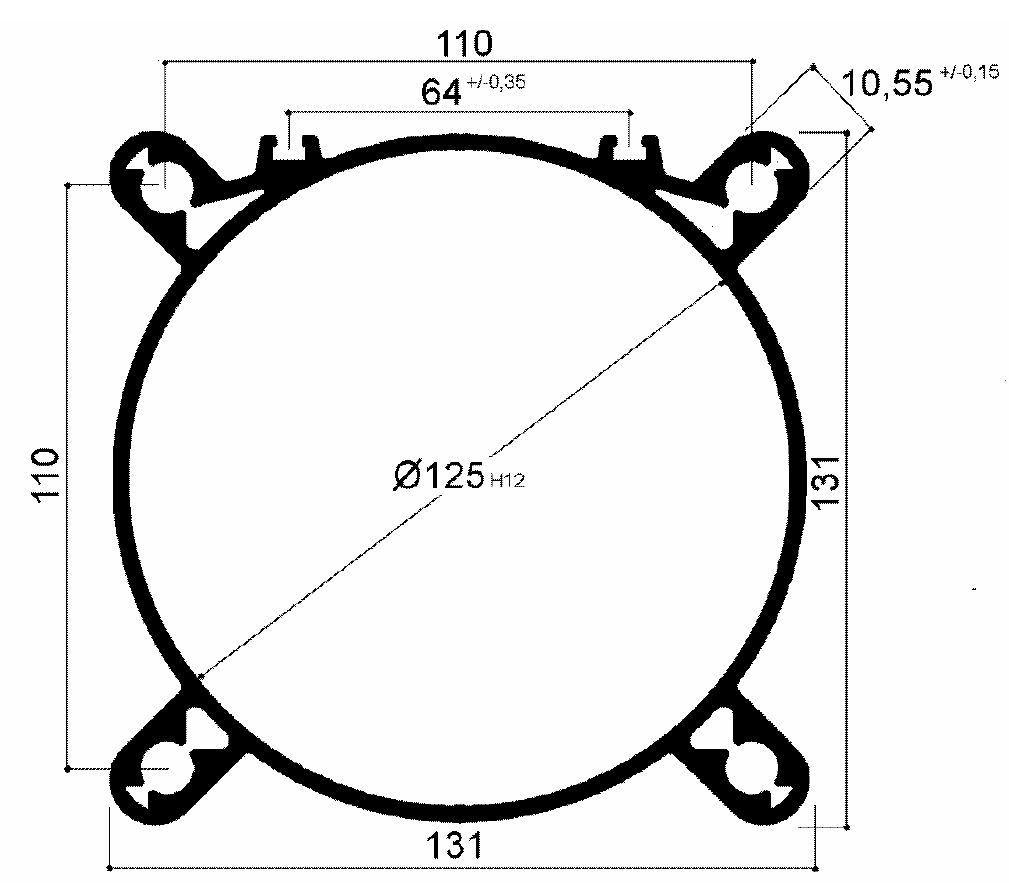

| PNLG125 |
 |
