ACCESSORIES FOR MODULAR ALUMINUM PROFILES: GROUND FIXING



modular aluminum profile

Accessory technical data sheet:

3-3531 Tumbled aluminum plate for articulated feet with M8 central thread (40x80) 3-3531 plate M8

3-5531 Plate in tumbled aluminum for articulated feet with M12 central hole (40x80) 3-5531 Plate M12

3-7531 Aluminum plate for articulated feet with M16 central hole (80x80) 3-7531 Plate M16

3-4531 Tumbled aluminum plate for swivel feet with M10 thread (40x80) 3-4531 plate M10

3-6531 Tumbled aluminum plate for swivel feet with M12 (80x80) thread 3-6531 Plate M12

3-8531 Aluminum plate for fixing wheels on 80x80 profiles 3-8531 Plate for wheel fixing

3-8731 Foot, base diameter 40 mm in polyamide Base diam. 40

3-0831 Foot, Base diameter 60 mm in polyamide 3-0831 Base Diam. 60

3-2831 Foot, Base diameter 80 mm in polyamide 3-2831 Base Diam. 80

3-5831 Pin with ball in galvanized steel M10X90 3-5831 Pin M10X90

3-7831 Pin with zinc plated steel ball M16X100 3-7831 Pin with ball M16x100

3-6831 Pin with galvanized steel ball M12X100 Pin with ball M12X100

3-6831 Pin with galvanized steel ball M12X100Pin with ball M8x80

3-2531 Galvanized steel bracket for ground fixing; Bracket for fixing to the ground

F-0071 M6 Galvanized steel ball with M6 thread for fixing feet/bases in polyamide ball in galvanized steel M6 e M8
F-0072 M8 Galvanized steel ball with M6 thread for fixing feet/bases in polyamideball in galvanized steel M6 e M8

SERIE 40

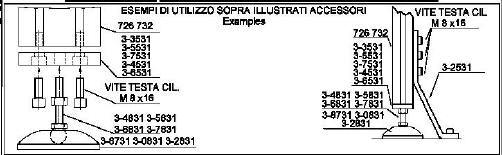

Example of use:

accessories for anchoring the structure to the ground

Complete range of accessories, joints, bracket extensions, caps for the construction of aluminum structures without having to carry out mechanical machining
