SPECIAL ALUMINUM PROFILES

Aluminum profile technical sheet: aluminum perimeter profile with 60mm radius, for joints between floor/wall or /wall/wall

Complete range of our aluminum profiles available on the website: www.omar-alluminio.it

cod.FM3201: code art. FM3201 shell in aluminum

cod.: FM3200:shell in FM3200 aluminum

Exemple of use art. 3200 / 3201: aluminum plinth assembly diagram

CODE ART.3200-3201 profile in aluminum alloy EN AW 6060 usually supplied in bars of 4 meters, or cut to size, it is also possible to have anodic oxidation in various colors on this aluminum profile. We can also supply the joints (corners, caps, etc..) for these profiles:

Item Code Description Example photo

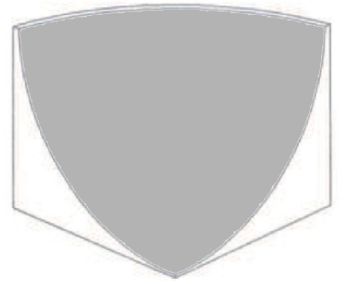

B-0001 CAST ALUMINUM 1/8 SPHERE (CONCAVE) NATURAL PAINTED FOR CORNER JOINT OF PROFILES 3200 / 3201 1/8 sphere junctionExample of 1/8 concave sphere junction

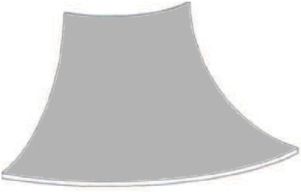

B-0002 CAST ALUMINUM 1/4 SPHERE (CONVEX) NATURAL PAINTED FOR CORNER JOINT OF PROFILES 3200 / 3201 1/4 sphere junctionExample of a 1/4 convex sphere junction

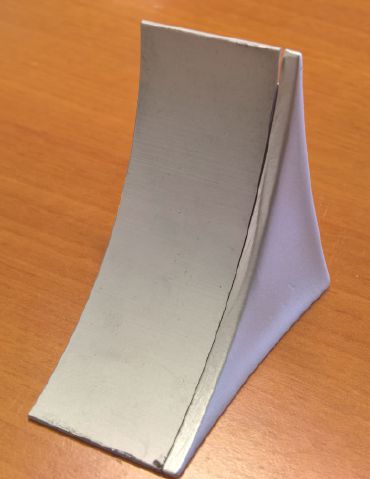

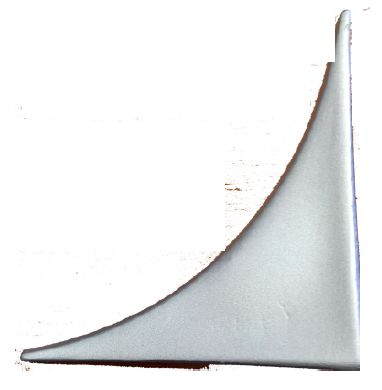

B-0003 CAST ALUMINUM NATURAL PAINTED END CAP FOR PROFILES 3200 / 3201 Cap / terminal for cove in aluminiumExample of use of an end cap / cap with cove aluminum profile
