"COMB" FINNED ALUMINUM HEAT SINKERS

List of aluminum profiles suitable for the production of heat sinks, available in stock also for small quantities

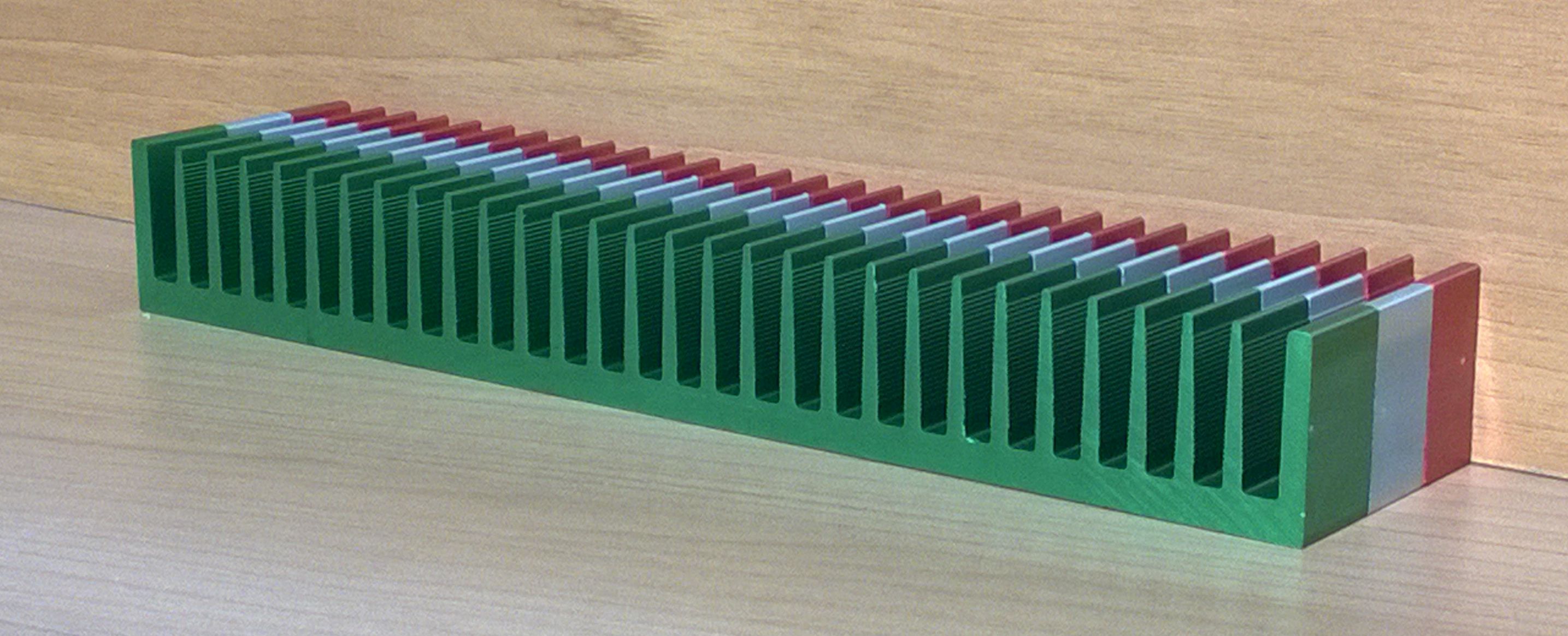

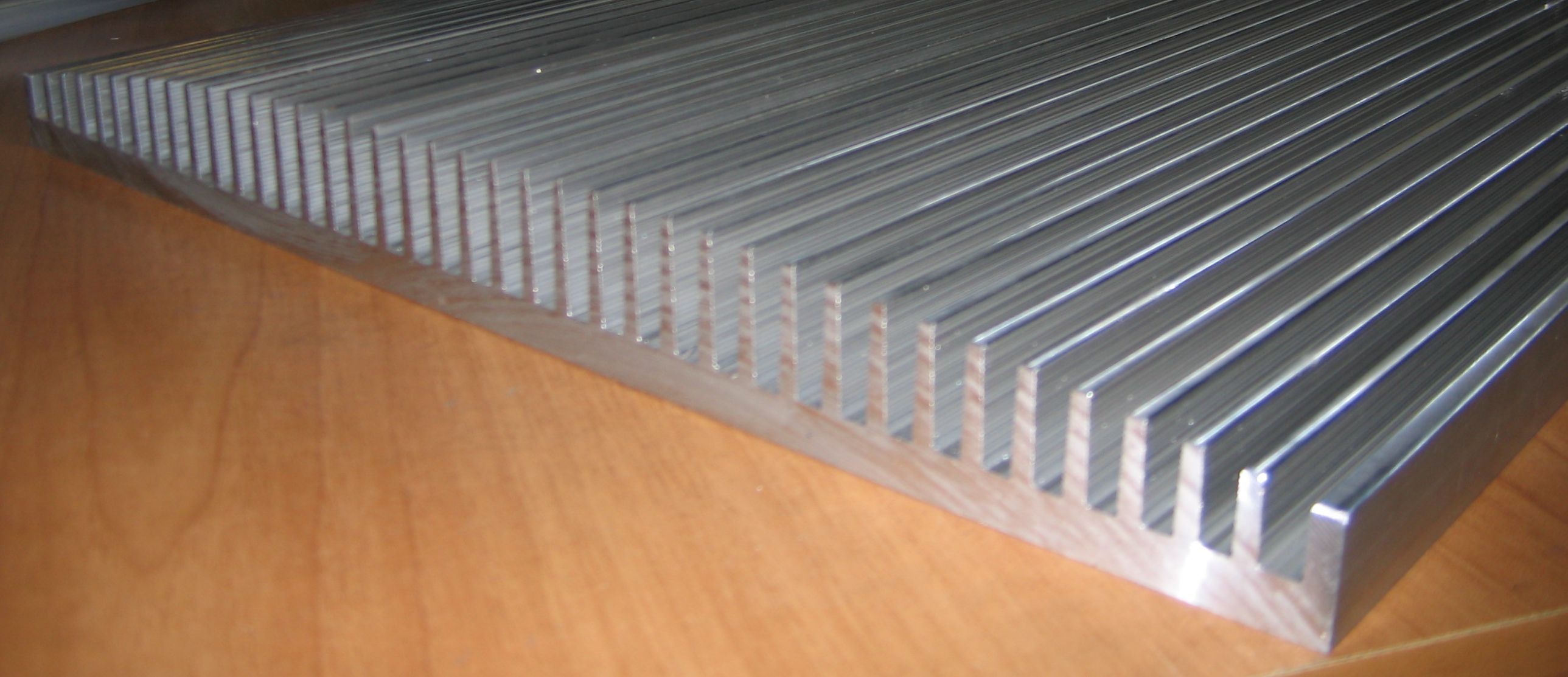

heat sinks in aluminum barsanodized aluminum dissipatoraluminum dissipator fin



Complete range of our aluminum profiles available on the website: www.omar- Alluminio.it

sheared U heat sinks

Heat sink table sorted by the size indicated in the drawing with "A". The length of the bars (indicated in the drawing with "L") varies from 2 to 4 meters depending on the heat sink model. Custom cuts are made on aluminum profiles

Code
Heatsink bar size

AxB (mm)

DRAWING (OUT OF SCALE)
811
19x48
sectional aluminum heat sink
808
22x22
sectional aluminum heat sink
2265
25x17
sectional aluminum heat sink
810
30x22
sectional aluminum heat sink
2202
30x36
sectional aluminum heat sink
868
32,2x7,62
sectional aluminum heat sink
884
34x60
sectional aluminum heat sink
2119
35x20
sectional aluminum heat sink
893
35x35
sectional aluminum heat sink
837
36,5x45
sectional aluminum heat sink
812
37,5x3,1
sectional aluminum heat sink
833
38x28,5
sectional aluminum heat sink
883
40x7,62
sectional aluminum heat sink
888
40x9
sectional aluminum heat sink
934
40,82x24,99
sectional aluminum heat sink
2266
41,4x30,5
sectional aluminum heat sink
834
40,1x35
sectional aluminum heat sink
915
41,4x34
sectional aluminum heat sink
919
42x15
sectional aluminum heat sink
914
42x44
sectional aluminum heat sink

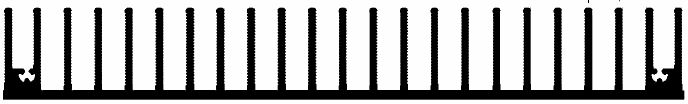

974
43,2x16,51
sectional aluminum heat sink
882
47,5x19
sectional aluminum heat sink
2181
48x39,5
sectional aluminum heat sink
2158
50x40
sectional aluminum heat sink
963
52x40
sectional aluminum heat sink
916
52,5x70
sectional aluminum heat sink
863
54,48x17,95
sectional aluminum heat sink
857
56x40
sectional aluminum heat sink
856
59,43x25,3
sectional aluminum heat sink
832
64,5x9
sectional aluminum heat sink
906
66x40
sectional aluminum heat sink
2112
67,5x25
sectional aluminum heat sink
2176
70x35,5
sectional aluminum heat sink
831
72x30
sectional aluminum heat sink
867
74x30
sectional aluminum heat sink
842
75x10
sectional aluminum heat sink
858
76x30
sectional aluminum heat sink

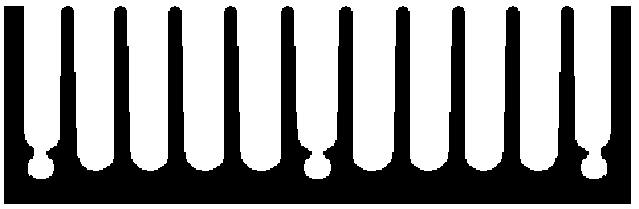

2197
80x26
sectional aluminum heat sink
976
82x32
sectional aluminum heat sink
847
82x32
sectional aluminum heat sink
907
84x40
sectional aluminum heat sink
2125
86x48
sectional aluminum heat sink
824
90x37
sectional aluminum heat sink
890
95x70
sectional aluminum heat sink
978
99,4x16
sectional aluminum heat sink
886
100x15
sectional aluminum heat sink
2193
100x19
sectional aluminum heat sink
970
100x25
sectional aluminum heat sink
931
100x35
sectional aluminum heat sink
849
100x40
sectional aluminum heat sink
917
109x39,5
sectional aluminum heat sink
900
112x67,5
sectional aluminum heat sink
827
113x37
sectional aluminum heat sink
971
115x80
sectional aluminum heat sink
2235
120x22,5
sectional aluminum heat sink
889
120x58
sectional aluminum heat sink

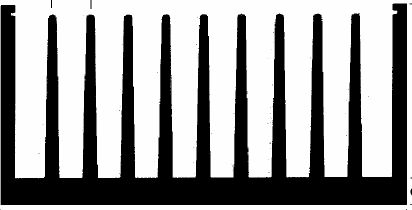

983
120x64
sectional aluminum heat sink
2148
121x25
sectional aluminum heat sink

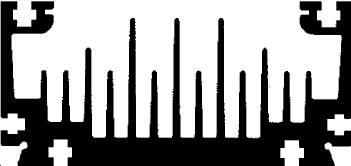

903
121x58,5
sectional aluminum heat sink
2153
125,5x83
sectional aluminum heat sink
936
130x55
sectional aluminum heat sink
814
135x20
sectional aluminum heat sink
2170
138x33
sectional aluminum heat sink
905
138x40
sectional aluminum heat sink
805
145x8,2
sectional aluminum heat sink
803
150x5,5
sectional aluminum heat sink
830
150x26
sectional aluminum heat sink
848
150x26
sectional aluminum heat sink
904
150x27
sectional aluminum heat sink
885
150x40
sectional aluminum heat sink
838
154x8,5
sectional aluminum heat sink
878
155x43,5
sectional aluminum heat sink
887
158x15
sectional aluminum heat sink
850
160x40
sectional aluminum heat sink
967
160x50
sectional aluminum heat sink
891
161,25x50,2
sectional aluminum heat sink
898
162x25
sectional aluminum heat sink
826
164,5x26,9
sectional aluminum heat sink
846
172x13,5
sectional aluminum heat sink
912
173x28
sectional aluminum heat sink
968
177,5x40
sectional aluminum heat sink
940
181x56,5
sectional aluminum heat sink
998
183,6x15
sectional aluminum heat sink
824
188,5x11,5
sectional aluminum heat sink
804
190x50
sectional aluminum heat sink
624
190x68
sectional aluminum heat sink
901
190x75
sectional aluminum heat sink
852
197x20
sectional aluminum heat sink
896
200x15
sectional aluminum heat sink
881
200x20
sectional aluminum heat sink
853
200x25
sectional aluminum heat sink
2234
200x29,4
sectional aluminum heat sink
937
200x39
sectional aluminum heat sink
928
200x40
sectional aluminum heat sink
924
200x40
sectional aluminum heat sink
835
200x40,3
sectional aluminum heat sink
911
200x65,5
sectional aluminum heat sink
880
200x72
sectional aluminum heat sink
879
200x72
sectional aluminum heat sink
932
200x83
sectional aluminum heat sink
984
200x85
sectional aluminum heat sink
2182
200x90
sectional aluminum heat sink
623
213x40
sectional aluminum heat sink
946
215x50,5
sectional aluminum heat sink
925
215x77
sectional aluminum heat sink
947
216x77
sectional aluminum heat sink
872
216x83
sectional aluminum heat sink
950
220x76,5
sectional aluminum heat sink
873
235x60
sectional aluminum heat sink
622
244x57,5
sectional aluminum heat sink
897
245x25
sectional aluminum heat sink
855
250x40
sectional aluminum heat sink
933
250x40
sectional aluminum heat sink
821
250x80,5
sectional aluminum heat sink
894
230x80,5
sectional aluminum heat sink
875
250x83
sectional aluminum heat sink
902
260x67
sectional aluminum heat sink
874
265x74
sectional aluminum heat sink
899
300x25
sectional aluminum heat sink
996
300x39,7
sectional aluminum heat sink
836
300x40
sectional aluminum heat sink
865
300x40
sectional aluminum heat sink
2249
300x65
sectional aluminum heat sink
876
300x83
sectional aluminum heat sink
926
300x83
sectional aluminum heat sink
930
300x84
sectional aluminum heat sink
979
300x84
sectional aluminum heat sink
2155
301,5x71
sectional aluminum heat sink
962
320x75,5
sectional aluminum heat sink
918
345,5x40
sectional aluminum heat sink
910
362x35
sectional aluminum heat sink
813
400x40
sectional aluminum heat sink
871
400x40
sectional aluminum heat sink
980
400x85
sectional aluminum heat sink
992
450x85
sectional aluminum heat sink
2141
440x41,6
sectional aluminum heat sink
981
500x85
sectional aluminum heat sink
993
550x85
sectional aluminum heat sink
982
600x85
sectional aluminum heat sink
986
650x85
sectional aluminum heat sink
987
700x85
sectional aluminum heat sink
988
750x85
sectional aluminum heat sink
989
800x85
sectional aluminum heat sink
990
850x85
sectional aluminum heat sink
991
900x85
sectional aluminum heat sink
