ALUMINUM SYNOPTIC PANELS FOR ELECTRONICS
We produce aluminum synoptic panels to the customer's design to accompany the aluminum profiles for electronic card holder containers.
We also have ready for delivery standard base panels completely closed, with countersunk holes for fastening to the container body, in natural oxidized 5005 aluminum and protected with a protective film READY IN STOCK to make prototypes which will follow:
Pannelli in alluminio a disegno del Cliente
-DRILLED
- ROUGH
-OXIDIZED: black, silver and colors upon request by the customer
- SERIGRAPHED
Material: 5005 aluminum sheet thickness 15/10 Natural Ox for screen printing. On the panel it is possible to carry out drawing work even for small series. Screen prints are made.
Complete range of our aluminum profiles available on the website: www.omar-alluminio.it
Front/rear panels in standard anodized aluminum for card holder container code: 96x192
Base panel completely closed, with countersunk holes for fixing to the container body, in natural oxidized 5005 aluminum and protected with film READY IN STOCK for making prototypes

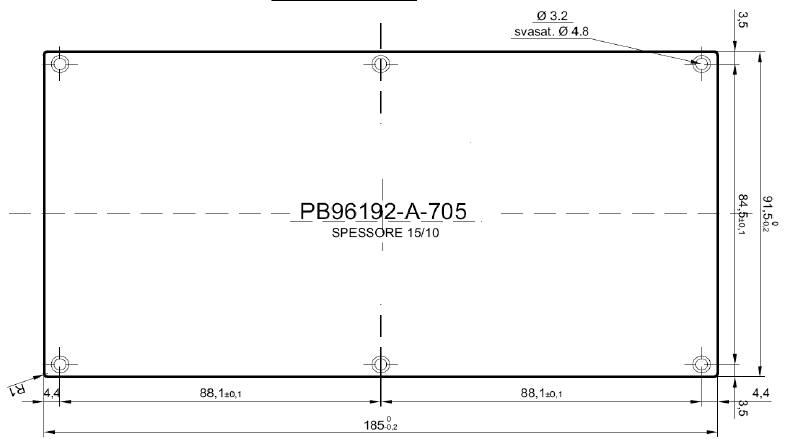

Article number: PB96192-A-705 basic panel drawing in format cad (dwg)

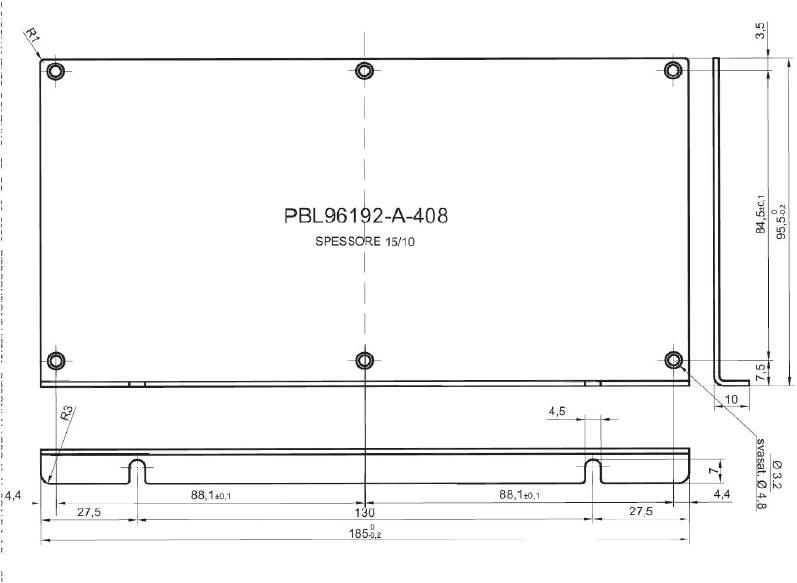

Part number: PBL96192-A-408 L-shaped base panel design cad (dwg)

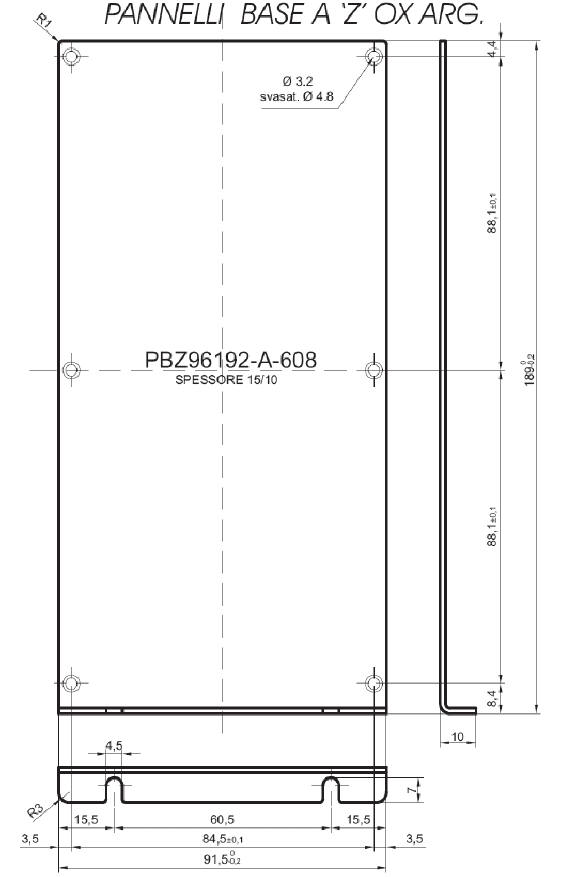

Part number: PBZ96192-A-608 Z-based panel drawing in format cad (dwg)
Use screws code VTTS
to fix the panel to the container
To be used with aluminum profile body electronic board holder code: 96x192
