ALUMINUM PROFILES FOR PNEUMATIC CYLINDERS
Aluminum profiles Tubes suitable for the production of pneumatic cylinders
for drives. These profiles are extruded in aluminum alloy EN-AW6060T6 / EN-AW 6063T6
and are subsequently calibrated - broached by mechanical processing on the
internal diameter of the tube and finally anodized in class 20 µm
NOTE: SPECIAL TECHNICAL CHARACTERISTICS HIGH QUALITY PRODUCT after an
accurate extrusion the profile is subjected to a special cold calibration
process of the jacket (internal part)
Full range of our aluminium profiles available on the website: www.omar-alluminio.it
PRODUCTION RANGE:
Aluminium

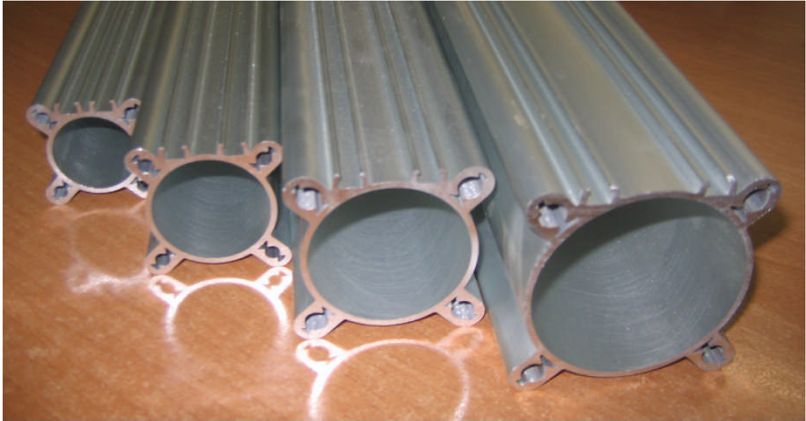

tubes for pneumatic cylinders ISO 15552 calibrated type:
-80 Series (holes for traditional
metric thread)
-90 Series (holes for metric thread
by rolling)
-89 Series (slotted holes for tie
rods)
Aluminum
tubes for pneumatic cylinders ISO 15552 calibrated (Series 99 square type)
Aluminum
tubes for calibrated SHORT STROKE pneumatic cylinders (94 Series)
Aluminum
tubes for calibrated ISO LIGHT pneumatic cylinders (Light Series)
DIN 59705

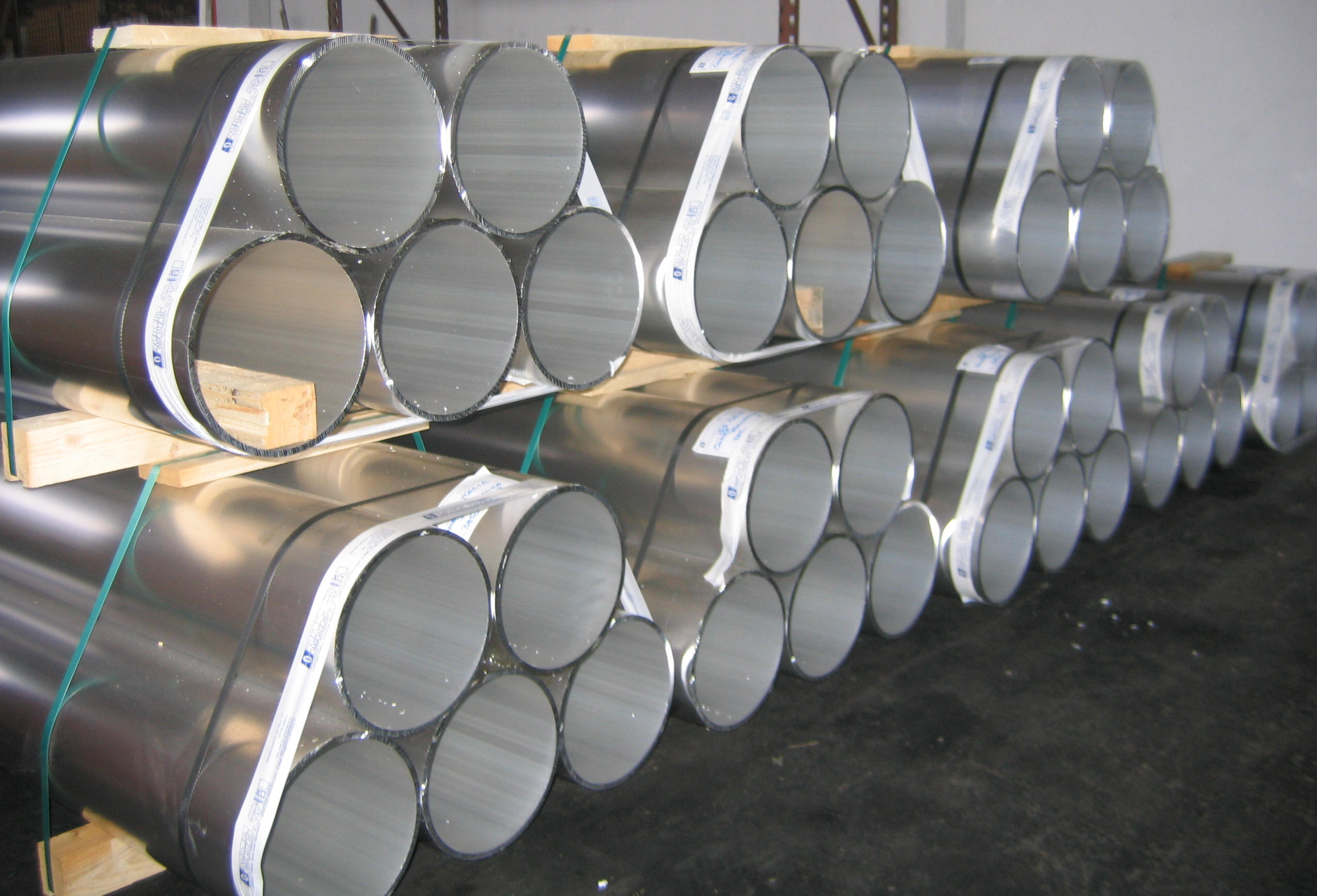

calibrated round aluminium tubes (Round Tubes for Pneumatics - pneumatic
cylinder tubes -)
Aluminium tubes

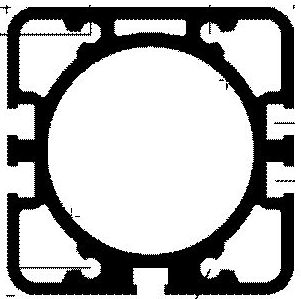

for pneumatic cylinders SERIE COMPATTO UNITOP/ISO 21287 and related heads
